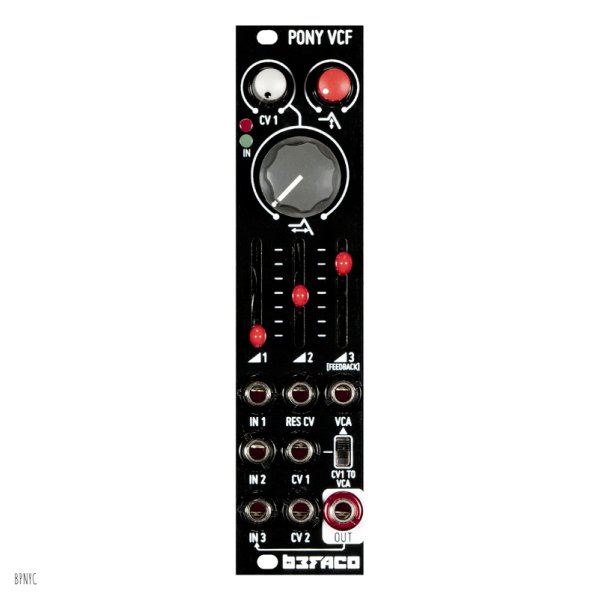

Space-conscious lowpass filter and volume processor. A combination of VCF + VCA + Mixer that lets you mix three different sound sources, and shape their tone, and levels in a breeze. The Pony Filter is built around the SSI2144 FATKEYS™ Chip. Has the elegant sound of the classic transistor filter without the associated distortions, due to Dave Rossum’s “improved ladder” topology.
FEATURES

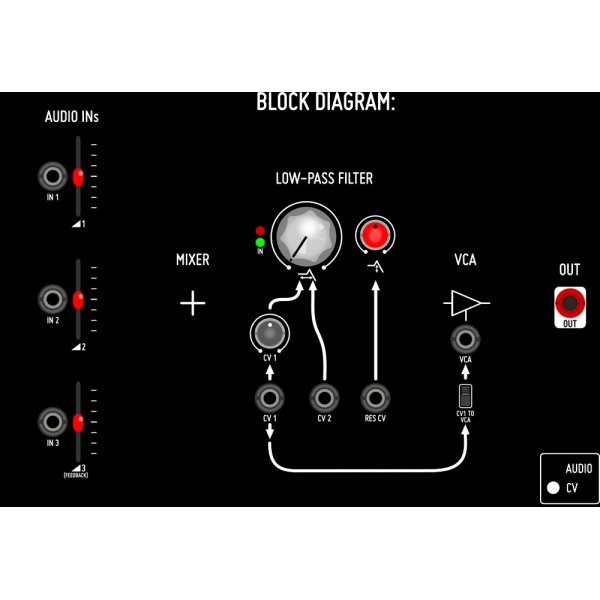

3 Channel Mixer (Out normalized to channel three for feedback)
Temperature-compensated Q and frequency.
Compensated Volume VS Resonance
2 Cuttof CV INs.
CV 1 Selectable routing Cut-Off or Cut-Off+VCA
Voltage controlled Q
Two Segment Peak Meter
SPECS
Four-pole, 24 dB/octave
Current needs: +12V=50mA, -12V=45mA
Width: 6 HP
Depth Assembled Version: 22mm
Depth DIY Kit Version: 35 mm
Designed, kits prepared and assembled in Barcelona.
