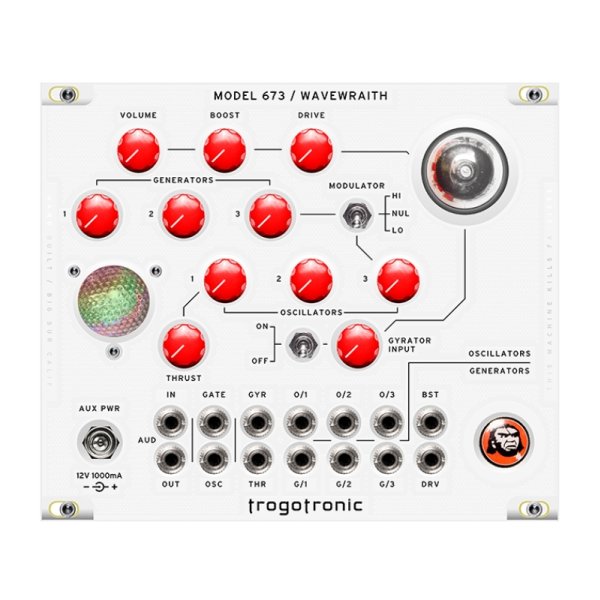

Model m673 WaveWraith is an Analog Vacuum-Tube module that packs the console’s core into a Euro-Module the size of a CD Case. After a tube-warming countdown from ten, WaveWraith is knobs-deep in Interstellar Sonic Horror straight outta the box. Patch into Audio Input & bewitch what’s brung (as an unprecedented sidechain FX) or send a white-hot panic-patch tangler far beyond the event horizon.

A FULL-DOZEN Gate & CV inputs are primed to dock hard in 30hp of your modular space-station & if you’ve got any landing zone left keep the pod-bay doors wide open for the 19hp breakout. The optional performance-button module puts the same layout & premium switchgear as the “Semi-Modular” Console Version at your digit-tips. High voltage vacuum tubes can be hungry so the Optional Auxiliary PSU accommodates power-starved modular-starships @ 0mA load on the +12v rail (21mA load on -12v rail).

• All-Analog Signal Path
• 11 Control Knobs
• Multi-Lamp Analog-Feedback Display
• Audio Input for deeply haunted Audio FX
• 12 Gate / CV 1/8″ Inputs
• 10 Element Vactrol Control-Voltage Array
• 10 CV Attenuators / Parameter Controls
• Gates for Output & Triple-Osc Array
• 9 Multimode Key Breakout Module = Optional
• Aux. PSU = Optional
• Swappable 9-Pin Twin-Triode Tube

—which is to say you can change “glass” with MOST of the MANY versions of new (or classic) Twin-Triode Preamp Tubes to subtly alter the overall sound of the instrument.

Simultaneously delicate & brute, terrifying & beautiful, time invested in WaveWraith bears dividends: ghastly transitions, lengthy Rube Goldberg cycles & endless foley ideas for the classic sci-fi horror movie of choice. Instantly playable yet confoundingly deep, WaveWraith packs a haunted universe in CD-Cover sized piece of rack-space.

Main Module Specs:

• Euro-Format
• 30hp
• Depth = 1.75” (45mm)
• +12v rail Peak Cold-Start 950mA; Running 365mA
• +12v rail Peak w/Optional Auxiliary PSU 0mA
• +5v 0mA (not used)
• -12v rail Peak 21mA
• 12vDC Aux. Power Supply: Optional

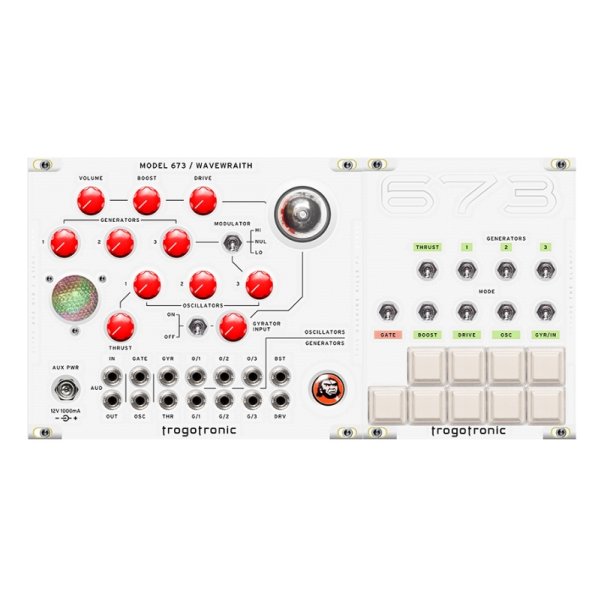

Main Module + Breakout Specs:

• Euro-Format
• 49HP
• Depth = 1.75” (45mm)
• +12v rail Peak Cold-Start 950mA; Running 425mA
• +12v rail Peak w/Optional Auxiliary PSU 0mA
•  +5v 0mA (not used)
• -12v rail Peak 21mA
