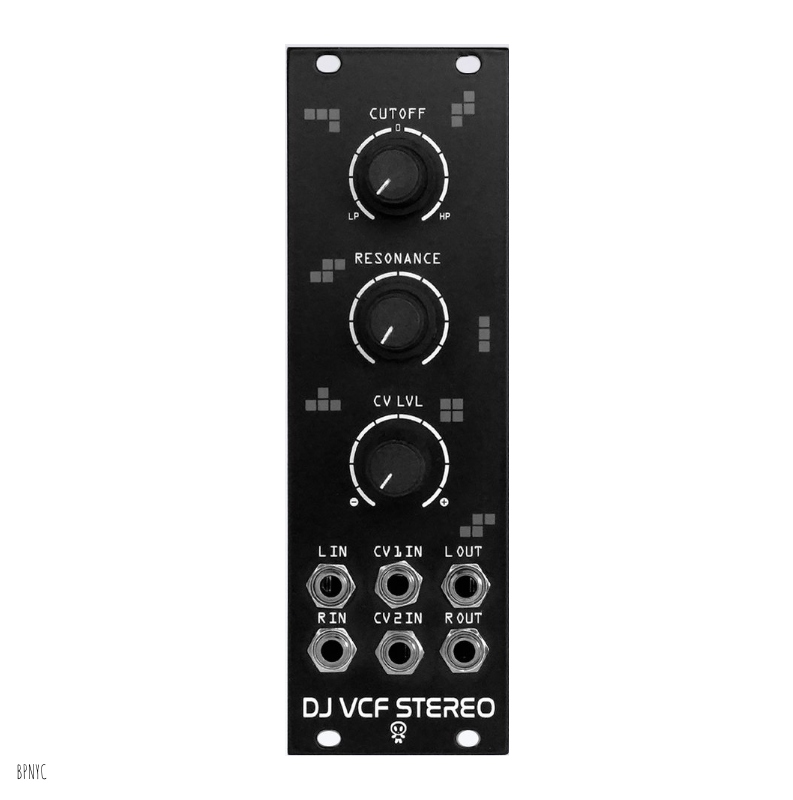

As its name suggests, the Erica Synths DJ VCF STEREO module provides sound treatment functionality typically found on DJ decks – it is fully open when the cutoff knob is at 12:00. When turned counter-clockwise, lowpass filtering is applied and when turned clockwise, highpass filtering is initiated. Additionally, there is a nice-sounding, adjustable resonance parameter. This provides hands-on control over the sound during performances as well as unconventional timbre modulations that are hard to achieve with conventional state variable filters.
Features
- Fully analogue stereo DJ-style VCF
- Manual cutoff and resonance control
- Two cutoff CV inputs, one with an attenuverter
Technical specifications:
Audio level | 10Vptp |
CV level | -10V - +10V |
Filter slope | 24dB/oct |
Power consumption | +109mA, -101mA |
Module width | 8HP |
Module depth | 35mm |
Manuals
- User manual — Dec. 14, 2023English
