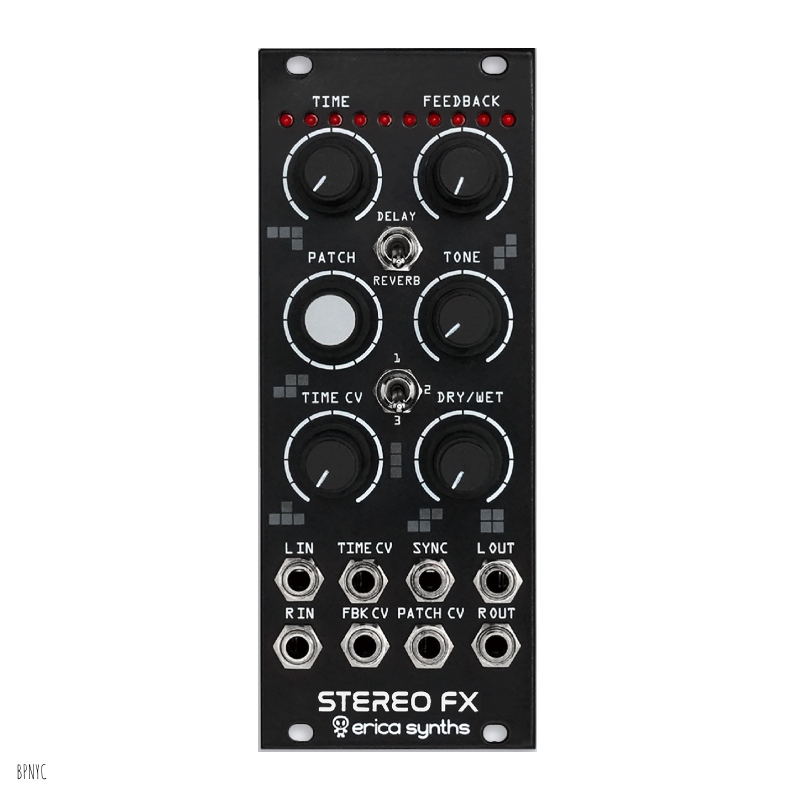

The STEREO FX module brings hi-fi stereo effects into the Erica Synths Drum Series. Based on our new DSP engine, the module provides a wide range of custom delay and reverb effects. CV control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance rack.
Features
- Hi-Fi stereo FX module
- 3 delay and 3 reverb effects
- Tap and clock synchronization of delay time
- Delay time divisions and multiplications in sync mode
- 10 preset patches
- CV control over delay time, feedback, and preset selection
The FX is developed in collaboration with the Dutch company 112dB which offers some of the best-sounding VST instruments.
Technical specifications:
| Audio input level | -5V – +5V |
| Delay time | 3ms – 3s |
| CV level (full span) | -5 – +5V |
| Power consumption | +123mA, -40mA |
| Module width | 10HP |
| Module depth | 35mm |
User manual — Dec. 14, 2023
- Stereo FX 1.1 Firmware — Feb. 28, 2024Audio bootloader file for the Stereo FX module
