Everything that you need for powering up of your case is included in one complete 70W SET with two bus boards. SeventyPWR SET is the best choice on the market for 6U eurorack studio and traveling cases with lot of digital modules and modules with high startup current requires.

Description
Konstant Lab Power SET is an ideal choice of power for DIY case builders. Everything that you need to power up your case is included in one complete SET. SeventyPWR SET is the best choice for eurorack studio and traveling cases with lot of digital modules.

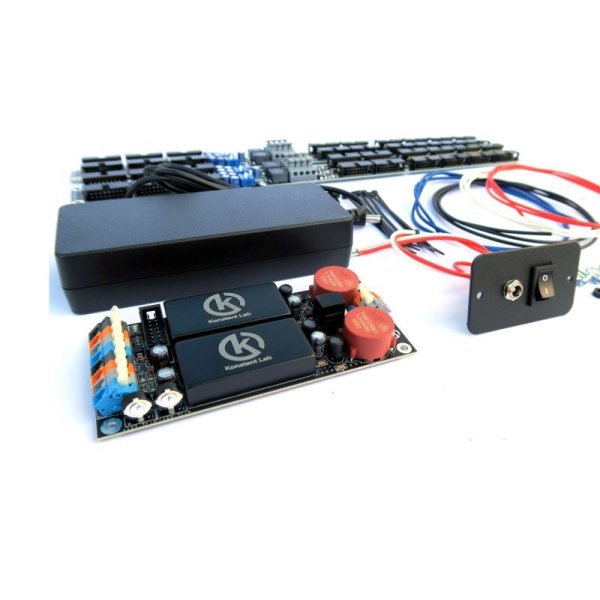

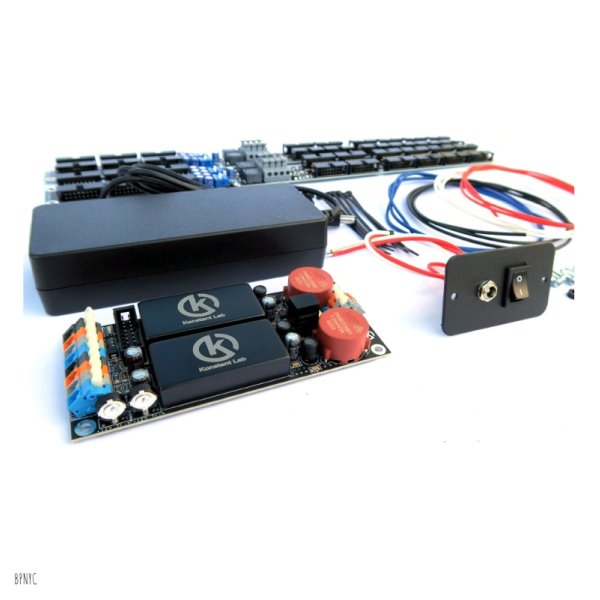

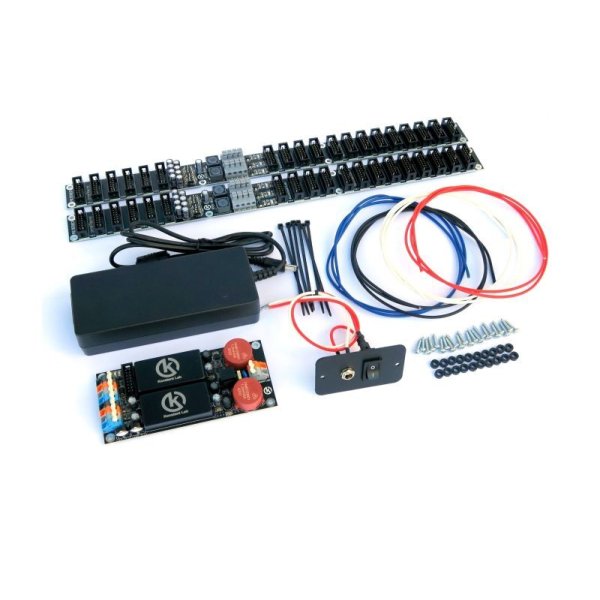

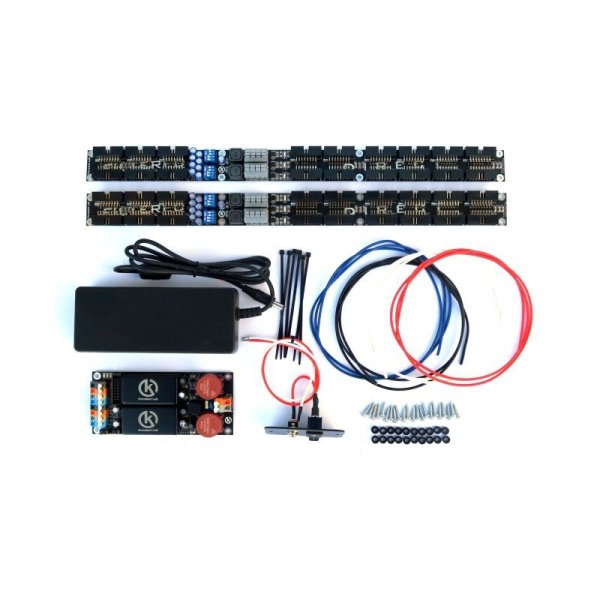

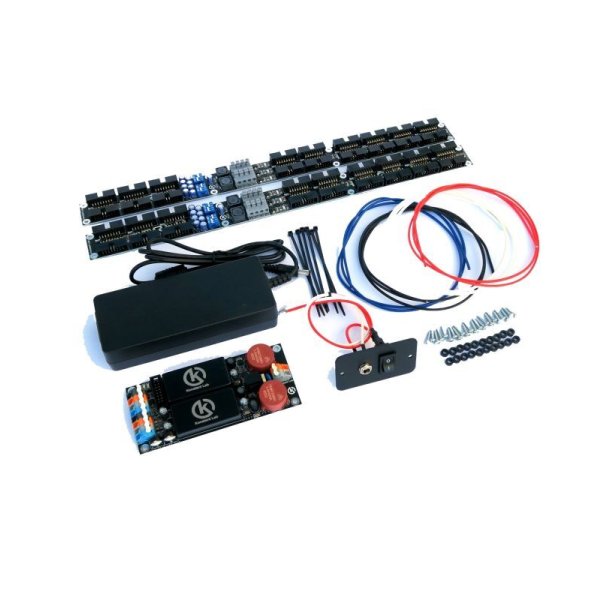

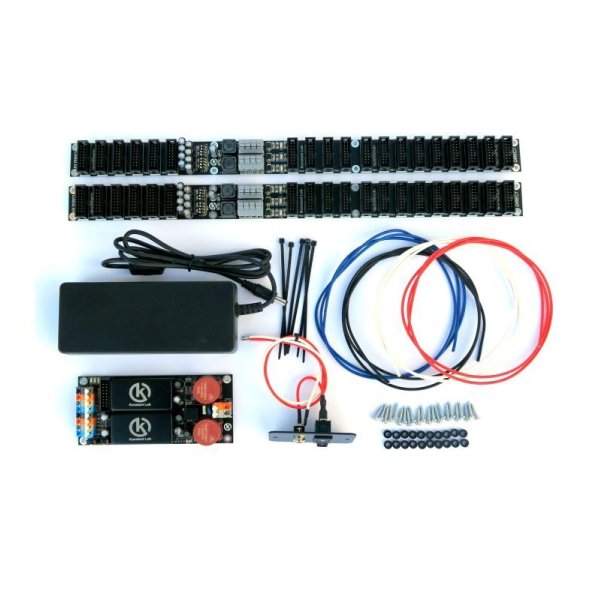

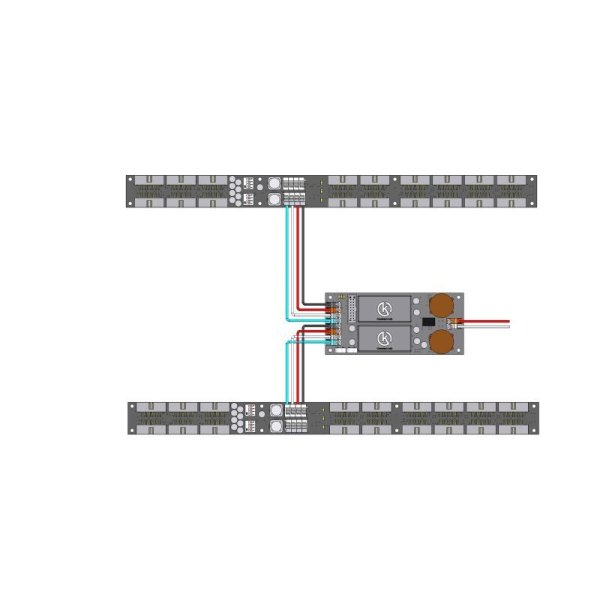

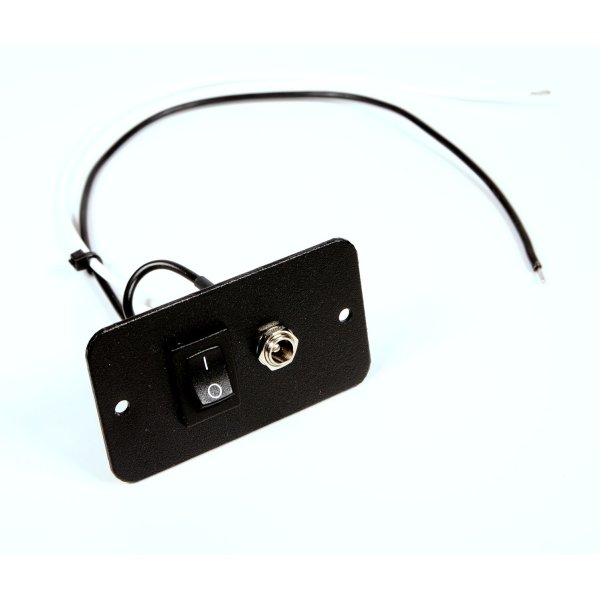

SeventyPWR SET – includes a small 70W power board (zero HP) (+12V / 2.5A, -12V / 2.5A, +5V / 2A), power inlet panel with switch, two Filtered bus boards #1 – each of them has 18 output headers (6 filtered and 12 direct) or Filtered bus boards #2 – each of them has 19 output headers (6 filtered and 13 direct) which ensures that you will be able to power up quite a lot of modules, 90W Meanwell power brick, wires, spacers, and screws.

SeventyPWR is a small but powerful and precise PSU solution. It is sturdy and stable PSU with immunity against high startup currents which require some modules. You can mount it into your synth case without sacrificing any HP. SeventyPWR is safely supplied from an external DC power brick (18-24V).

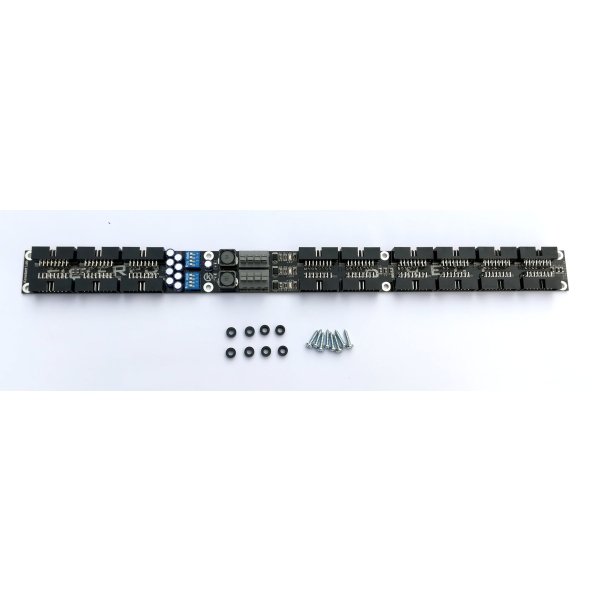

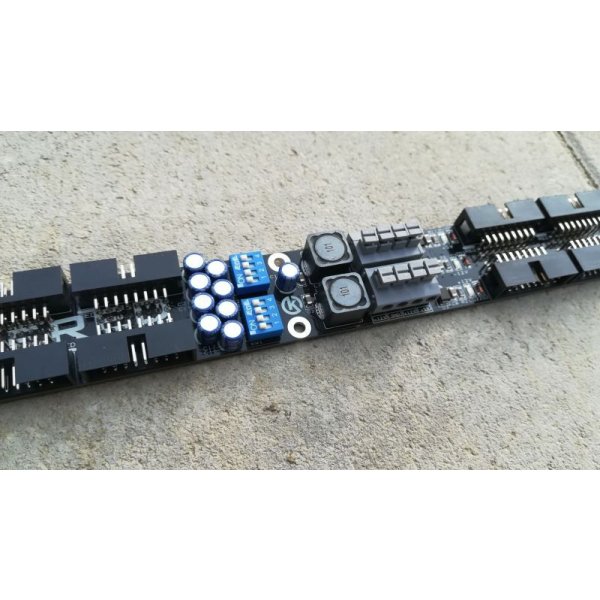

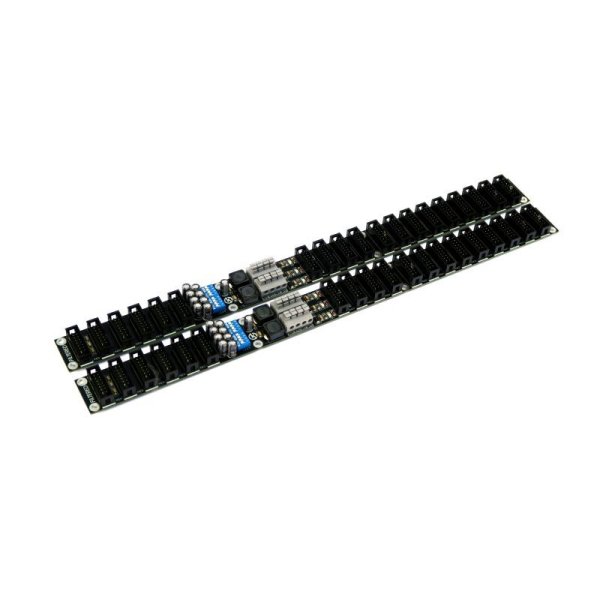

Filtered Bus Board is a low profile bus board with extra filtered output headers. Bus board contains 18 or 19 output headers (depends on what kind of bus board you chose). 12 (13) direct headers and 6 filtered headers with LC filters. Filtered headers are specially dedicated to feed analog modules that are sensitive/susceptible to power quality. Filters reject noise caused by PSU and digital modules by 70%. Each power rail is protected against over voltage so your modules and system are safe under all conditions. 90% of the bus board area has only 11mm with inserted connectors. This feature makes Filtered bus board an ideal power distribution solution for skiff cases where depth is a concern.

Technical Information
DIMENSIONS: 43 × 30 × 6 cm

WEIGHT:1500 g

POWER: 70W

OUTPUT: +12V / 2500mA, -12V / 2500mA, +5V / 2000mA

TYPICAL OUTPUT RIPPLE NOISE: under 17mVpp / 20MHz BW

NUMBER OF HEADERS:Filtered bus board #1 option – Total 36 angled output shrouded headers
Filtered bus board #2 option – Total 38 straight output shrouded headers

OTHER FEATURES:Overvoltage protection on PSU also on each bus board – keep your modules safe
High quality shock resistant "Push to Connect" terminals
Unique LC filtering circuits
LEDs indicate presence of voltage and voltage drop
Easy for montage and connection
Meanwell power brick with worldwide input range
All parts for PSU system included (PSU, Powerbrick, Busboards, powercord, Inlet with switch, wires, screws, spacers, fixing stripes…)

PLUG:USA Plug

BUS BOARD VERSION:Filtered bus board #1 – angled connectors, Filtered bus board #2 – straight connectors
