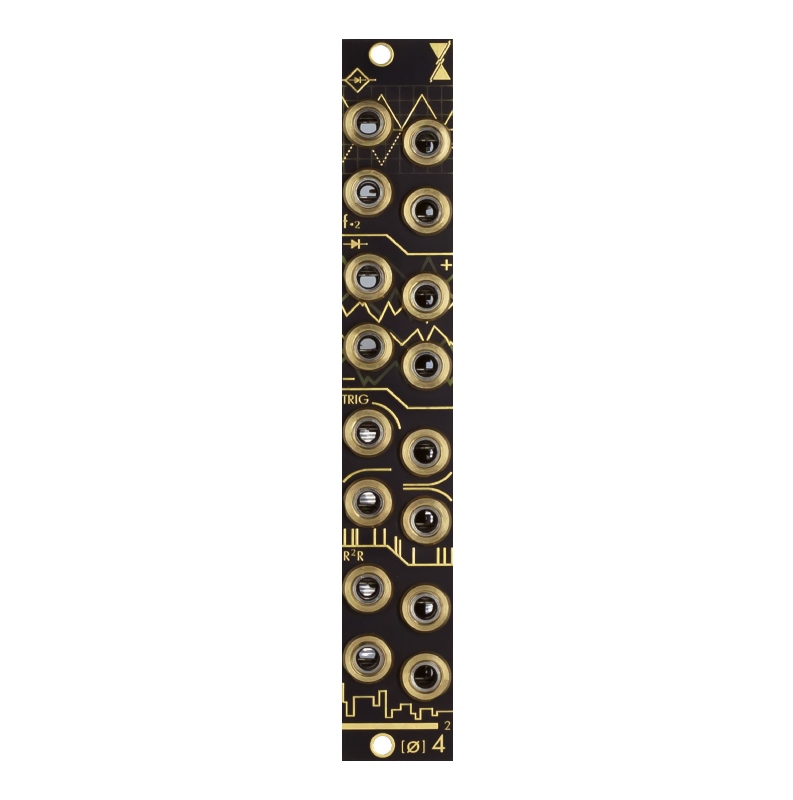

Meet the Instruō øchd expander ([ø]4^2), an expansion module for one of Eurorack’s most beloved modulation sources, øchd.

Launched in 2019 and designed in collaboration with Ben “DivKid” Wilson, the Instruō øchd has set a standard for compact and versatile modulation sources which can now be seen across thousands of eurorack systems. The Instruō øchd expander [ø]4^2 adds 16 outputs and 4 new sets of functionality to øchd’s normal operation.

Using øchd’s LFOs as signal sources, øchd expander [ø]4^2 adds full wave rectified unipolar positive LFOs, analog diode logic for minimum and maximum voltage mixing, cascaded stochastic trigger signals for interesting rhythmic patterns, and R-2R 4-bit random voltage sources for all things wild and chaotic – all of which are controlled by øchd’s single frequency control and CV attenuverter.

8 LFOs in 4 HP is great and all, but 24 modulation sources in 8 HP is much, much better.

øchd expander | function (maths) 8+4^2 = more modulation

MANUAL

QUICKSTART GUIDE

Description

Size

4HP
Depth: 32mm

Power

+12V: 5mA
–12V: 50mA

Features

• • 16 additional outputs for øchd
  • 4x full wave rectified unipolar positive LFOs
  • 2x Analog diode logic pairs (AND/Min and OR/Max)
  • 4x Cascading stochastic trigger signals
  • 4x R-2R 4-bit logic random voltage sources (slow noise)
