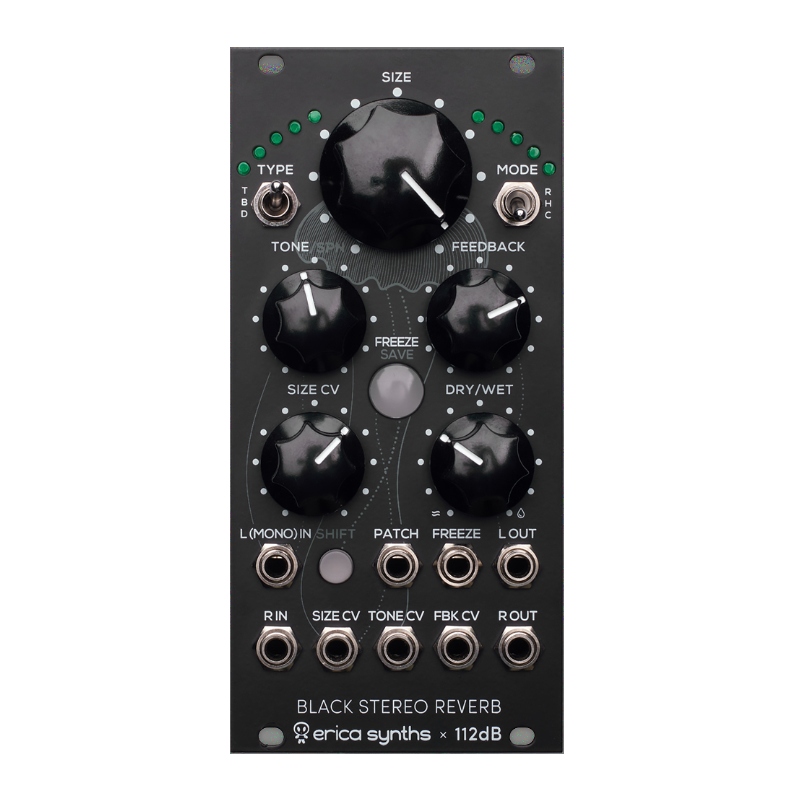

Erica Synths Black STEREO Reverb

販売価格: 48,411円

[通常販売価格: 48,900円]

重さ: 1lb

商品詳細

The Erica Synths Black Reverb is a versatile hi-fi stereo FX module with lots of unique features based on our custom DSP engine. The reverb sources are selectable Tape, BBD and "dirty BBD"; emulations with three modes, each – Room, Hall and Cathedral. Delicate room size control, feedback, tone and stereo spin controls allow for designing extremely delicate reverberation effects. CV control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance rack.

Features

  • Reverb based on Tape, BBD and digital delay lines
  • Three room sizes
  • Manual and triggered FREEZE
  • 10 preset patches
  • CV control over size, feedback, tone and preset selection
  • Adjustable stereo spin

The modules run on new Erica Synths DSP hardware and the effects are developed in collaboration with Dutch company 112dB who make some of the most beautiful sounding effects.

Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest-quality components are used, all inputs and outputs are protected against undesired overvoltage. Erica Black Series consist of range of modules that are needed to put together entire synth.

Technical specifications:

Max audio input level before clipping16Vptp
CV input range (full span)-5V - +5V
Sampling frequency48kHz, 24bit
Audio codecs-108 dynamic range, -98dB THD+N
Power consumption120mA@+12V, 39mA@-12V
Module width12HP
Module depth35mm

Manuals book
