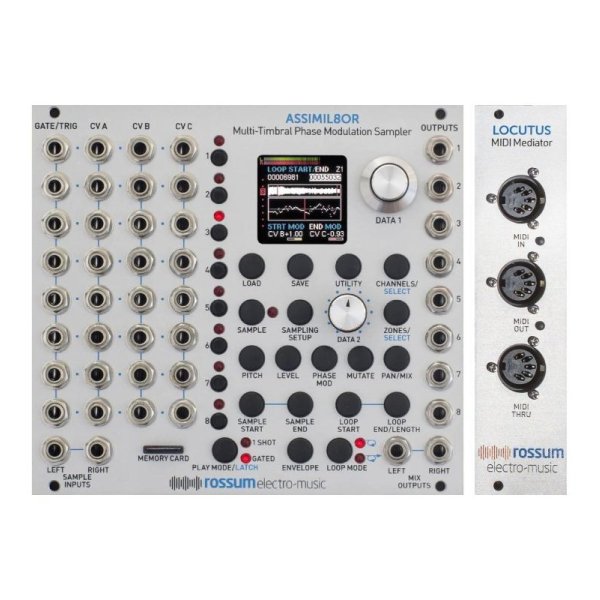

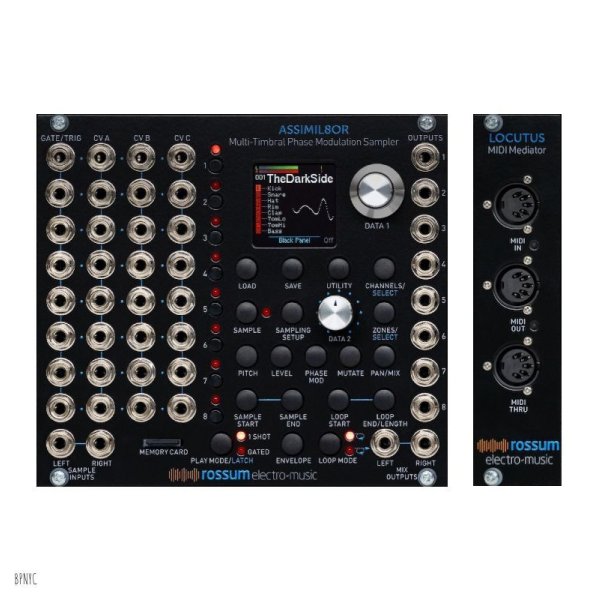

Rossum Assimil8or + Locutus(MIDI expander) BUNDLE

LOCUTUS is designed to interface Assimil8or with MIDI instruments, controllers, and sequencers to provide multichannel modulation and new polyphonic possibilities.

LOCUTUS includes a special attached cable to connect to the Assimil8or CPU behind the panel.

LOCUTUS is 6 HP wide and 25mm deep.

MIDI sources connected to LOCUTUS’ MIDI IN port can be used to modulate Assimil8or parameters using velocity, channel pressure, and MIDI CC (Continuous Controller) messages, select presets using MIDI Program Change (PC) messages, and/or optionally trigger Assimil8or channels with MIDI notes using user-selectable assignment modes. MIDI Setups can be configured with assignment modes including Dynamic, which intelligently cycles through Assimil8or’s channels to easily create polyphonic patches, Multi assignment modes ideal for playing multitimbral Assimil8or patches with MIDI sequencers, SP-1200 modes designed especially for triggering Assimil8or with SP-1200’s MIDI output, and more.

Locutus’ MIDI OUT port can be used to optionally transmit program messages when presets are changed and/or to send MIDI CC data based on the analog control voltages patched to Assimil8or’s 24 CV inputs. Using the new CV-to-MIDI options, Assimil8or and Locutus can be configured to control and modulate MIDI equipment using a eurorack modular system.

View or download Assimil8or documentation.

Assimil8or QuickStart Guide (PDF)

Assimil8or Manual (PDF)

Assimil8or 2.0 Software New Features Guide (PDF)

Locutus Installation Guide (PDF)

MIDI Reference (PDF)
