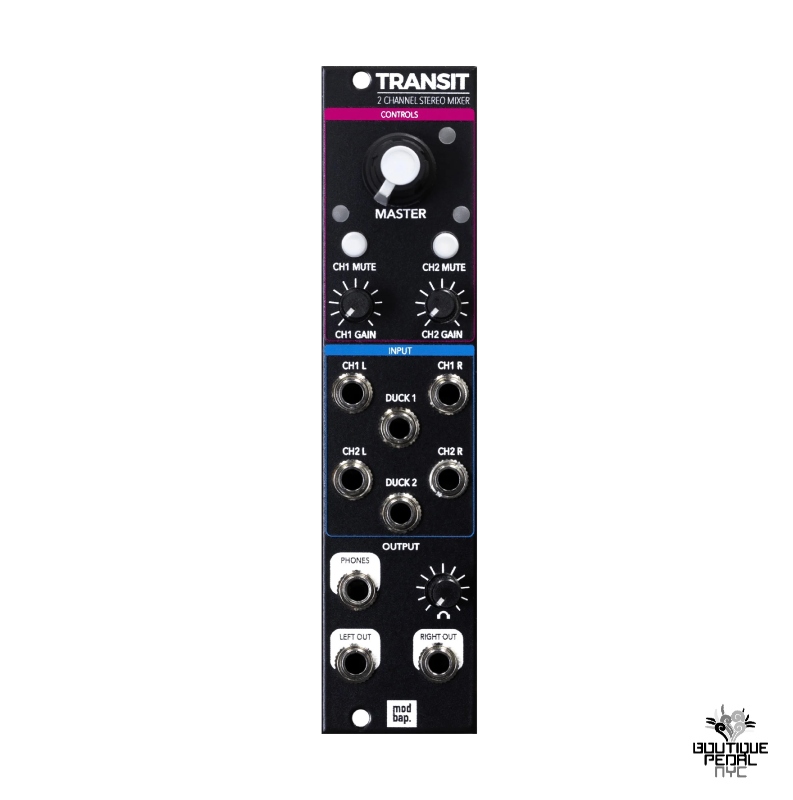

Transit has two stereo (dual mono) channel lanes of audio with an all-analog signal path. Each stereo channel lane has its own input gain control, mute button and ducking input. The Ducking input on each channel operates like traditional side-chaining on a compressor where an input signal, CV or Trigger input (i.e. LFO, Clock, Gate) modulates the gain reduction of the audio.
Transit offers a main stereo output controlled by the master volume control knob and an independent 3.5mm headphone output controlled by its own headphone level control knob.
Digitally controlled LEDs for master indicates level via white and pink illumination while each channel lane illuminates the LEDs with the color red when engaging mutes.
All in all, Transit is a rather full features compact 6hp dual stereo channel lane eurorack formatted mixer that offers easy signal mixing, gain staging, ducking, and performance-oriented mutes. Transit is just as at home in a small eurorack system as one Transit or several would be in a larger system.
Transit pairs perfectly with Per4mer and a Modbap20 compact powered Eurorack case. It also pairs well with Osiris and any other module that could benefit from a compact analog dual channel stereo ducking mixer, sub mixer or final output mixer.
All analog audio signal path
2 stereo channels
mutes per channel
gain control per channel
ducking input per channel
left/right output
master volume control
3.5mm headphones output with dedicated volume control knob
