BEFACO

BEFACO PONY VCO　次回入荷分

販売価格: 32,571円

[通常販売価格: 32,900円]

重さ: 1lb

お問い合わせ

商品詳細

  • Analog Thru-Zero Wavefolding VCO/LFO

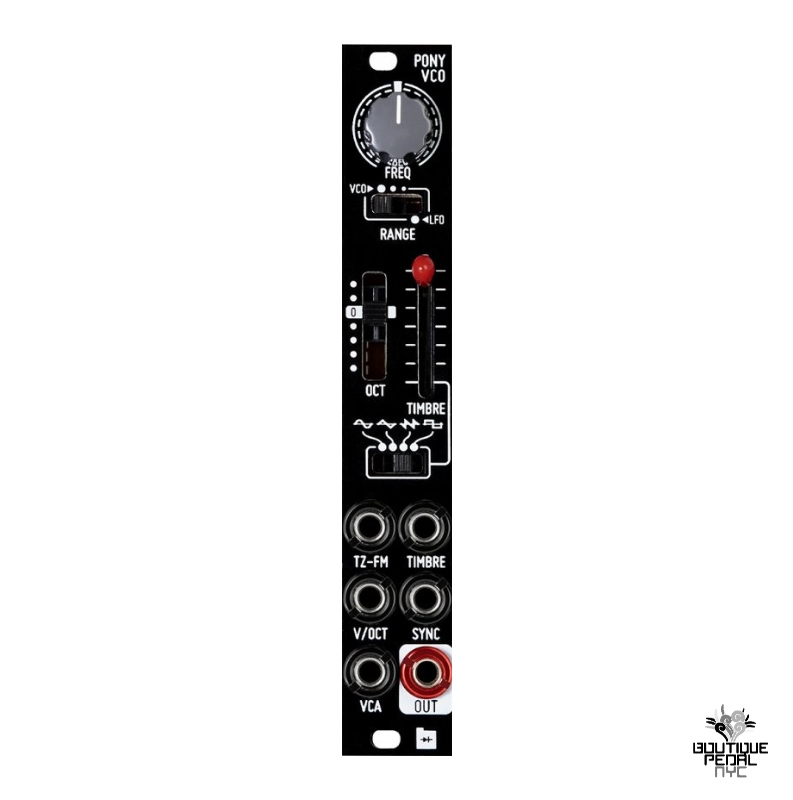

    Pony VCO is a fully analog Thru-Zero oscillator with wavefolder and dedicated VCA in only 4HP. The module offers great stability and tuning capabilities thanks to its powerful core, based on
    Sound Semiconductors IC. It comes with range selector, that allows it to go down to LFO range, as well as octave and waveform selectors.

    Pony VCO is also available in 1U format keeping the same functionality and control layout.

    FEATURES

    • Through Zero Frequency Modulation
    • Wavefolding (Timbre)
    • Pulsewidth Modulation (PWM)
    • SYNC
    • VCA
    • LFO

    SPECS

    • Current Draw: +12v: 32 mA -12v: 25mA
    • Width: 3U – 4HP
      1U – 24HP (Intellijel formatted front)
    • Depth: 30mm including power connector
    • Aluminium, heat-treated front panel.
    • Designed and assembled in Barcelona.

    RESOURCES



    In Through Zero oscillators, frequency is controlled by either positive and negative voltage. If FM CV goes below zero, the core will continue oscillating inverting its phase. This “little” change of behaviour allows the core to create a whole new range of timbres that are just impossible to achieve with regular VCOs.
    If you set the module as LFO, the range of funky modulations will be endless!
