Features
- Two perfectly stable main oscillators with CV-controlled waveforms
- Modulation oscillator with variable waveforms
- Highpass and Lowpass filters in series
- Free running or gate synced sample and hold circuit
- Multi-color noise generator
- DC coupled instrument inputs with signal inversion and envelope follower
- Ring modulator of unique design
- Looping trapezoid envelope generator and VCA
- Two output VCAs
- Signal meter with a dedicated audio/CV output
- FX section with great sounding Delay and Reverb developed in collaboration with 112db.com
- Recordable Joystick
- Analogue patch matrix with 3 attenuation levels in each patch point
- 254 patch memory
- Piano roll sequencer and two stepper modulation sources
- DIN5 MIDI Input and MIDI Thru
- Two assignable outputs
- Headphone output
- Dimensions: 309mm x 457mm x 115mm (with the joystick in centre position)
- Weight: 3.9 kg

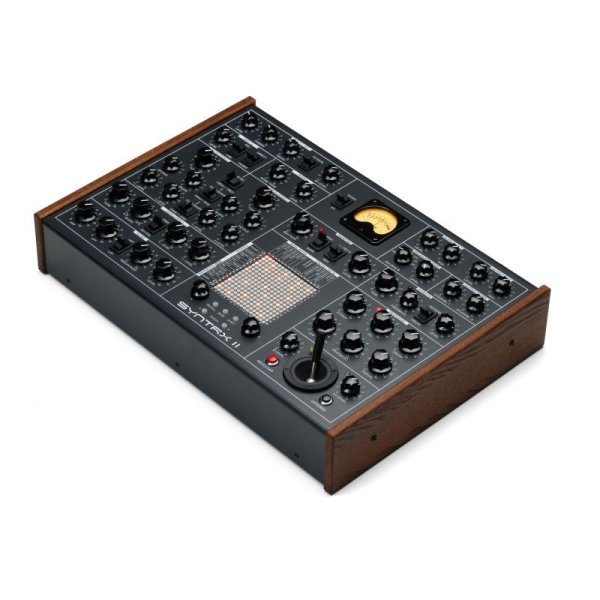

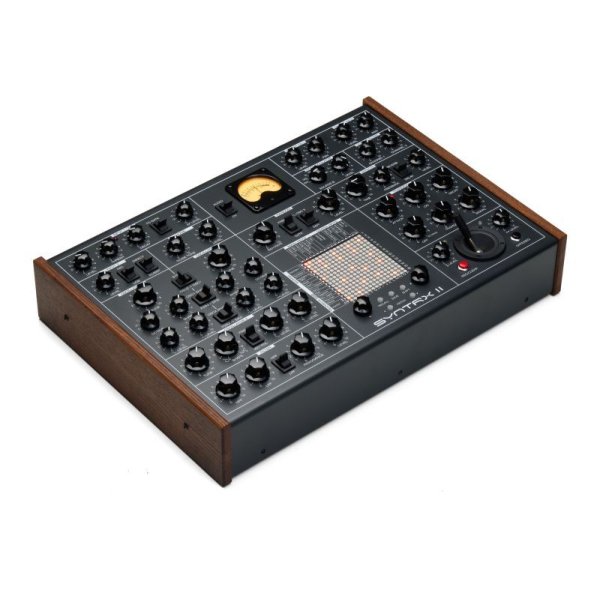

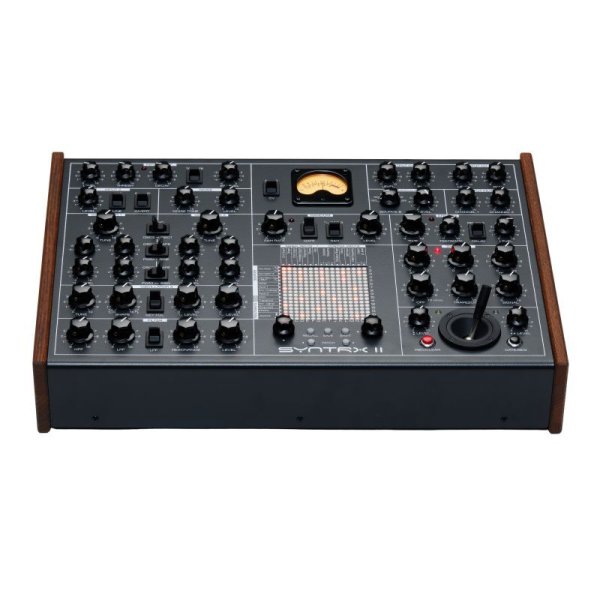

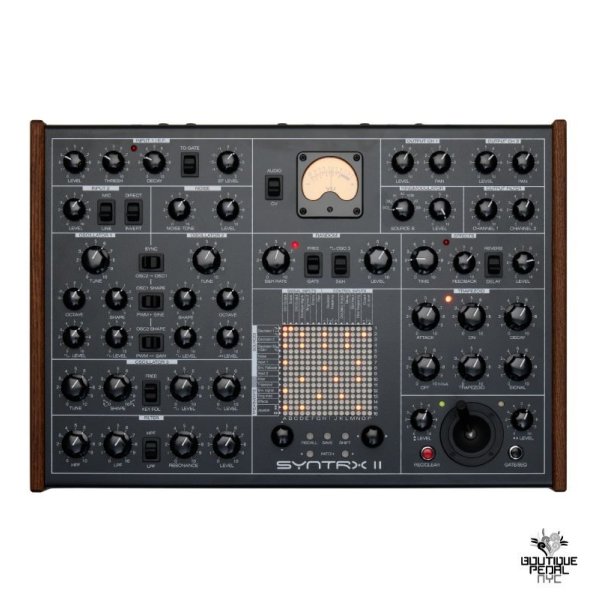

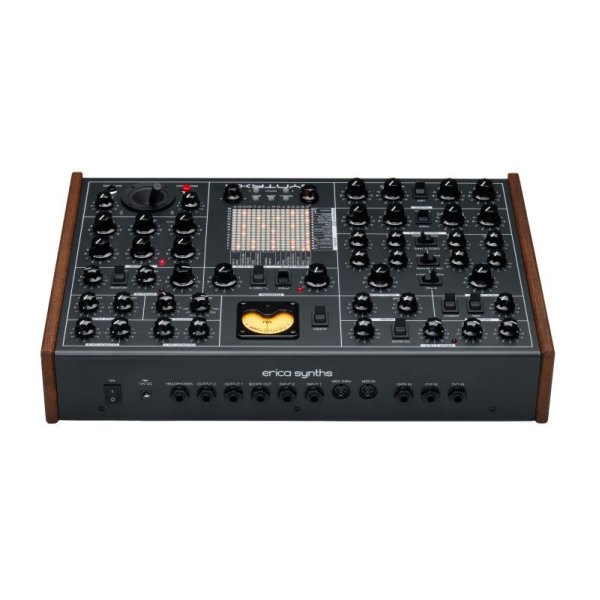

The SYNTRX II is the culmination of our analogue sound design circuits – two perfectly stable main oscillators with waveshapers, a modulation oscillator with 1V/oct tracking, a versatile multimode filter, supercharged external instrument inputs with an envelope follower, a unique, great-sounding ring modulator, a recordable joystick, built-in piano roll sequencer and stepped modulation sources, all arranged around our signature matrix mixer and topped off with powerful FX on our new DSP platform.
Manuals
- User manual — Dec. 14, 2022
