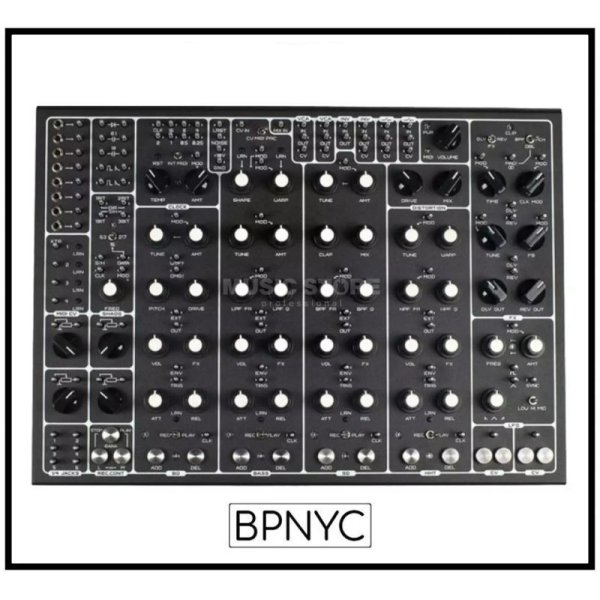

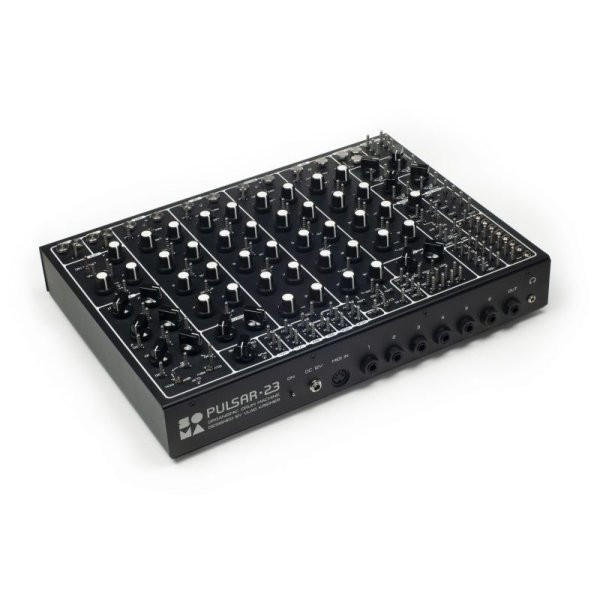

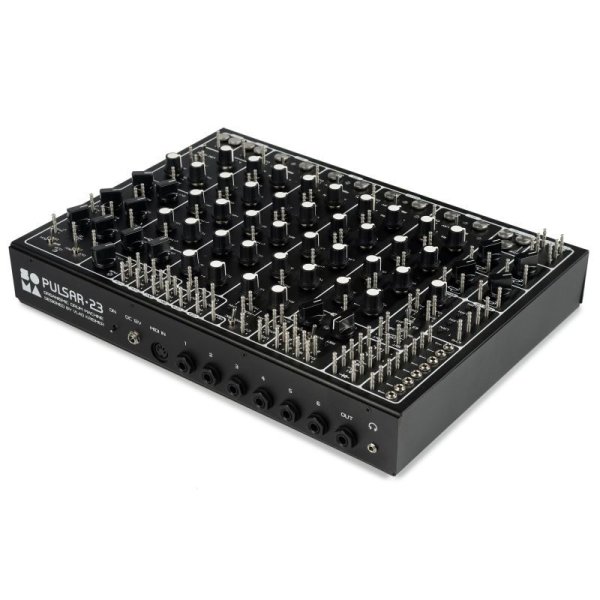

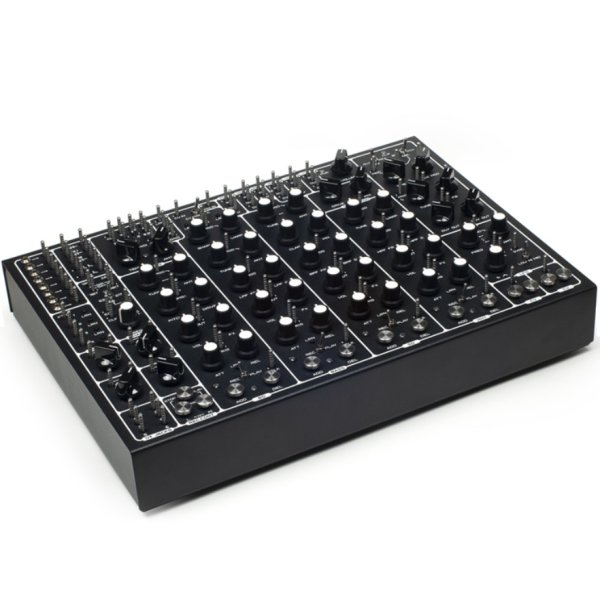

PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist’s body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.
PULSAR-23 main features:
– 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
– 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. – 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
– Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
– Wide range LFO (0.1 – 5000Hz) with variable waveform.
– Shaos – a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
– FX processor with CV control incl. CV control of the entire DSP’s sample rate.
– Distortion.
– 2 CV-controlled gates.
– 2 CV-controlled VCAs.
– 2 controllable inverters.
Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

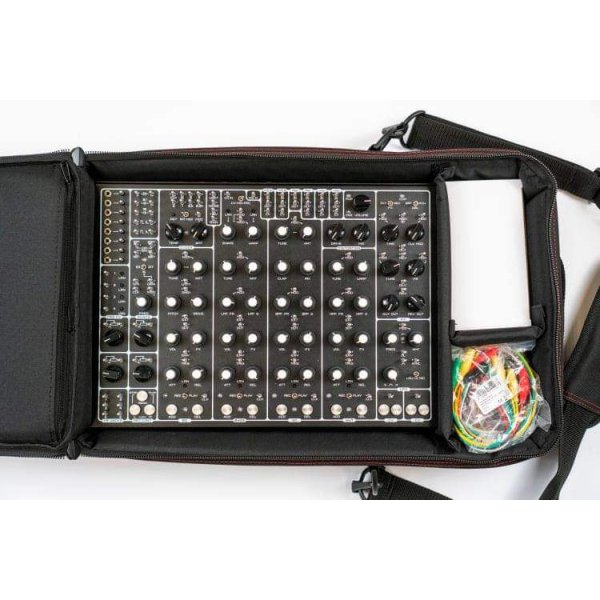

It comes in a special HQ bag with 30 alligator clips cables and PSU.
PULSAR available in orange, black and white colours.
Short specs:
– 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
– 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers.
– 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio. Has possibility of quantization.
– Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
– Wide range LFO (0.1 – 5000Hz) with variable waveform.
– Shaos – a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
– FX processor with CV control incl. CV control of the entire DSP’s sample rate.
– Distortion.
– 2 CV-controlled gates.
– 2 CV-controlled VCAs.
– 2 controllable inverters.
– MIDI control and synchronization
– 4 assignable attenuators
– 2 dynamic CV sensors for CV generation
The range of input and output CV and audio signals . . . . . . . . . . . . . 0 to + 10V
Main output voltage swing . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 2V
1/4 inch jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 total
Mini-jack (for Eurorack connection) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 total
MIDI input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . standard DIN socket
Headphone output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 mm mini-jack
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 volts (plus in the center)
Consumption current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 amperes
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 kg
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380x280x80 mm
Please note that Pulsar is an experimental analog synth that means that it has some small noise and bleeds that can’t affect your studio production or live performance but can be hearable in some modes. If you need a perfect silence and isolation of sound modules we recommend using 100% digital hardware.
What’s in the kit:
– PULSAR-23
– PSU
– 22 multi-colour cables with alligator clips 65cm
– 8 multi-colour cables with alligator clips 30cm
– High-quality handmade bag for transportation
