Explore a freshly squeezed approach to granular synthesis with nanobox | lemondrop, a polyphonic granular mini synthesizer with intuitive touchscreen control. Four voice polyphony, two granulators and an oscillator provide a wide sonic palette—from lush environmental pads to rugged and glitched-out textures. Instantly morph and shape sounds with the swipe of a finger using touchscreen X/Y control. Choose from hundreds of professionally designed presets and wav files, or quickly create your own patches with deep parameter control via the 2” touchscreen. Integrate lemondrop seamlessly with your existing tabletop gear—or create on-the-go thanks to a compact design that fits in the palm of your hand.
Adjust and tweak parameters quickly with an intuitive touchscreen interface
Perform with 4 voice polyphony, 2 granulators, and an oscillator
Sculpt your sound with 2 filters, 2 envelopes, 2 LFOs, and 1 modulation sequencer
Use your favorite MIDI controller for real time, hands-on sound manipulation
Mix and match 6 onboard effects in two slots for up to 12 possible combinations—choose from flanger, distortion, chorus, phaser (FX1), and delay and reverb (FX2)
Morph and shape sounds using touchscreen X/Y control
Choose from hundreds of professionally developed presets and wav files
Load your own wav files via micro-SD
Integrates seamlessly with other synths, drum machines, and audio devices
Get into the groove with a fast, fluid, and intuitive workflow
Make music anywhere thanks to a compact design and USB power
Flexible power options from USB C connection
Mini TRS connections for MIDI in and out, clock in, line in and line out
2″ touch screen, 2 knobs and 4 buttons in a 3.75″ x 3″ x 1.5″ package

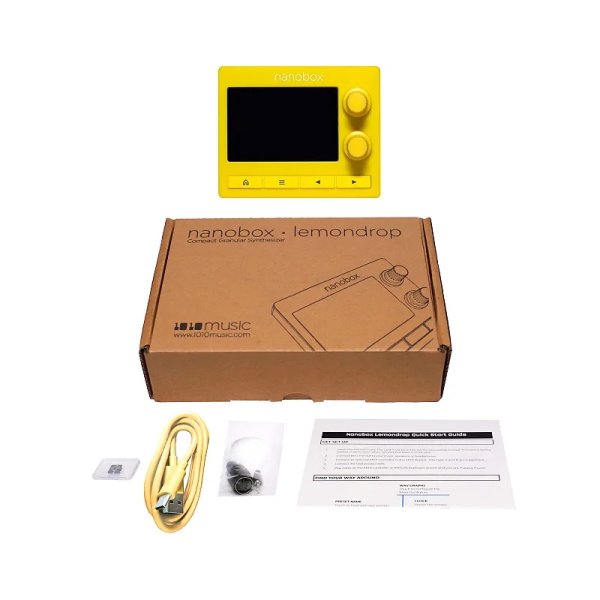

nanobox | lemondrop compact polyphonic granular synthesizer with touchscreen control
MicroSD card with presets and wav files
USB power cord
Type B TRS MIDI To MIDI 5 Pin DIN adapter
Quick Start Guide
Includes 153 presets and 311 wave files
16 grains per oscillator for a total of 128
Sample memory per oscillator 30 seconds
Power: USB-C connection 5V, 500mA
3.5mm audio input and output
Maximum input and output level: 2Vrms
DAC and ADC resolution: 24-bit
Internal resolution: 32-bit
Sample rate: 48kHz
MIDI Input: 3.5mm Type A/B auto sensing
MIDI Output: 3.5mm Type A/B selectable
Clock Input: 4 PPQ
MIDI support: Note On/Off, Mod Wheel, Sustain, Pitch Bend, Mono & poly Aftertouch, assignable CCs, and clock
