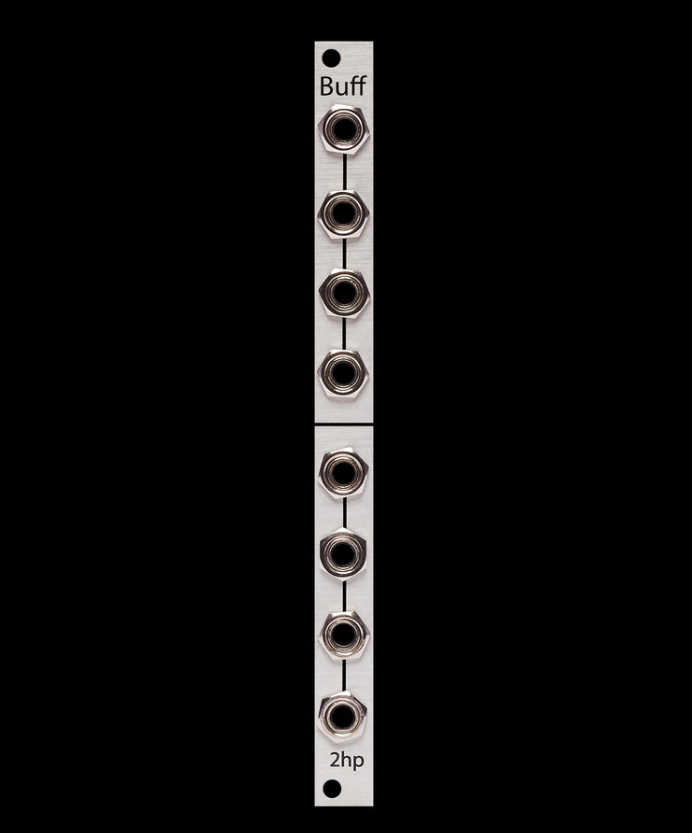

The 2hp Buff is a buffered multiple capable of splitting an input signal to multiple outputs. Due to its active architecture, inputs retain their full integrity as they are copied to multiple destinations. One input signal can be copied to six outputs, or two inputs can be copied to three outputs each. The Buff is especially great for splitting pitch or audio signals where signal integrity is critical. Keep your signals in shape with Buff.

Buffered multiple

Split one input to six outputs

Split two inputs to three outputs each

Great for splitting pitch or audio signals

Specifications

Width: 2HP

Power: +12V: 16mA, -12V: 16mA

Depth: 42mm
