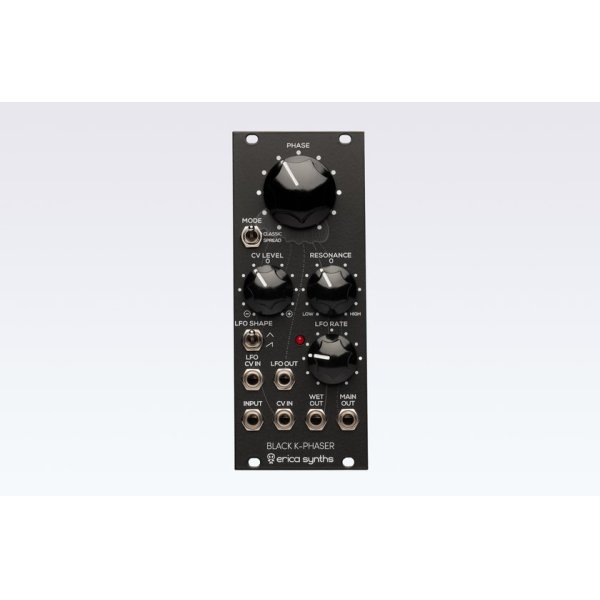

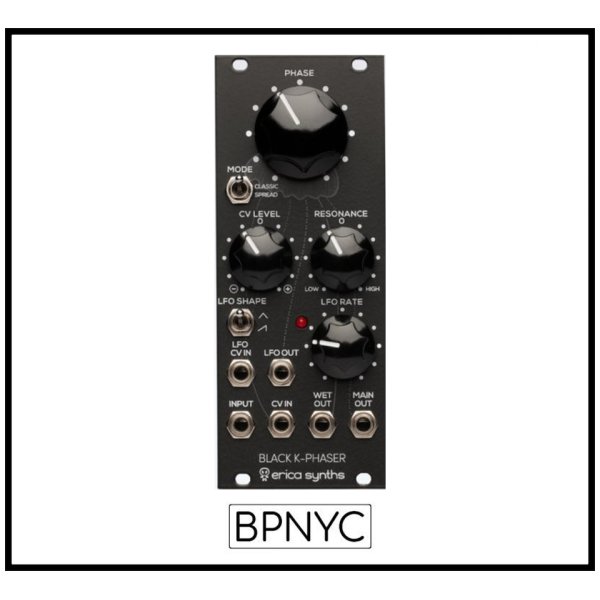

Erica Synths Black K-Phaser 次回入荷分

商品詳細

The Erica Synths Black K-Phaser is our take on a classical, genre defining FX unit – the Krautrock Phaser.

Features

  • 8 all-pass filters with photoresistor control
  • Classic and Spread (filter detune) mode
  • Resonance attenuverter
  • Selectable resonance path
  • Built in VC LFO with a dedicated output
  • Wet output
Dimensions : 10 HP 35 mm deep
Current Draw : 88 mA +12V 78 mA -12V 0 mA 5V


The Black K-Phaser retains the original concept of 8 all-pass filters with photoresistors, but we redesigned the filters and modulation circuit and added several unique features. A dip switch allows for selecting the number of filter stages involved in the resonance path, while the resonance attenuverter brings in never-heard-before feedback artefacts, and most importantly – the SPREAD mode detunes the all-pass filters for even more distinct behavior. A built-in voltage controlled LFO with selectable waveforms expands the modulation possibilities of the phaser and can be used as an independent modulation source for your modular system as well.

The Black K-Phaser is our tribute to the German electronic music pioneers that largely shaped the sound of electronic music worldwide.

Manuals book
