MULTI-BAND: EQ, COMPRESSOR/LIMITER, MID/SIDE PROCESSING

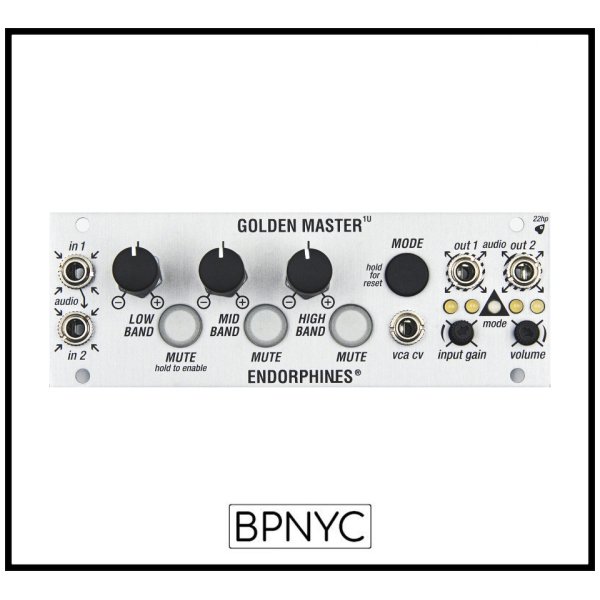

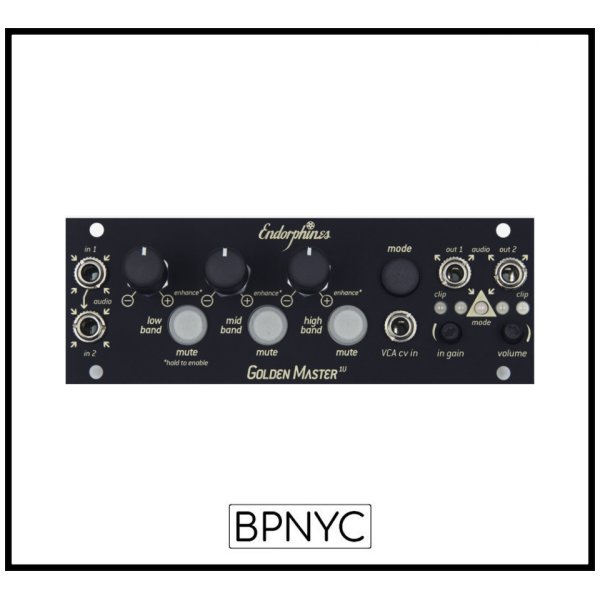

The Golden Master from Endorphin.es is a multi-band processor that takes inspiration from studio mastering and radio loudness units from the 1990s. It gives control over the EQ, compression, and mid/side processing of incoming audio.
With 16-bit/96kHz audio fidelity, you'll get incredible processing power. It features three bands—low, medium, and high—each handling a distinct portion of the audio spectrum. These controls feature a single knob that both boosts and cuts signals. Set the overall loudness limit of your sounds, and the brickwall limiter ensures all your sounds stay in check. This multi-band effect is the perfect end-of-chain module, ensuring that anything you throw at it sounds dynamic and full.
final output multiband processor for Eurorack
Instantly improve your raw Eurorack mixes to sound balanced and powerful on stage or wherever you are
96 kHz 16 bit audio I/O, with 32 bit internal processing
3-band compressor with intuitive one knob per band adjustment and brickwall limiter
mid/side stereo field processing
extra aux, stereo out, balanced output pins, compatible with Intellijel Audio Jacks V2 Boards / cases
available in 3U / 6HP version
Power consumption:
125 mA +12V
12 mA -12V
0 mA 5V
Dimensions
22 HP (1U)
42 mm deep
