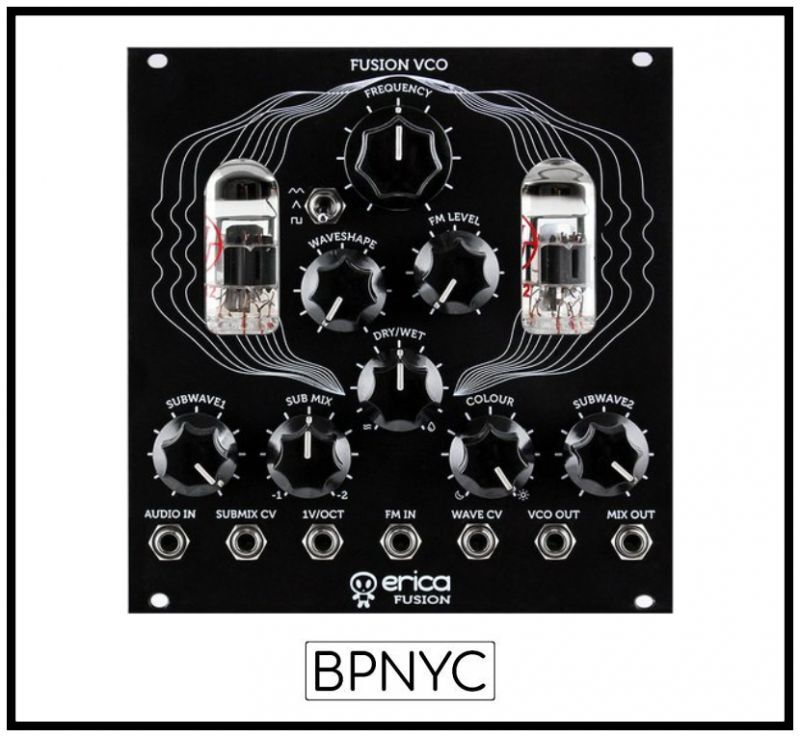

Erica Synths Fusion VCO is a special kind of VCO – it fuses the great tuning of a digital VCO with the warm and unique sound of vacuum tubes that work in suboscillator circuit.
This module contains two double triodes in bistable latch connection that act as suboscillators: -1 and -2 octaves with plenty of mixing opportunities for amazing sonic results. External audio signal can replace internal VCO. If you wish to go for really low frequencies and have a sound that sets your modular system apart from others – this is exactly the module, you need!
All Fusion modules by default are configured to work with regular eurorack PSU.
Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.
Would I build a setup around valve modules? I was expecting to say no, but having spent time with the Fusion setup I’m surprised to say I actually would. It’s distinctive, it’s versatile, but more importantly it’s fun. Music has always been about philosophies and aesthetic choices; Erica understand that and offer something fantastically different with the Fusion series. These are not sterile, surgical tools. Far from it. And they’re all the better for that. - Attack Magazine
User manual — April 23, 2018
Technical specifications:
| Audio input signal level | up to 20V ptp |
| Output signal level | 10V ptp |
| VCO range | C1 – C8 |
| Power supply | bipolar +-12V , eurorack standard |
| Power consumption | Eurorack PSU configuration: 215 mA @ +12V, 185 mA @ -12V (NB – start-up power consuption for few seconds is +-250 mA) |
| Module width | 24HP |
| Module depth | 35mm |
