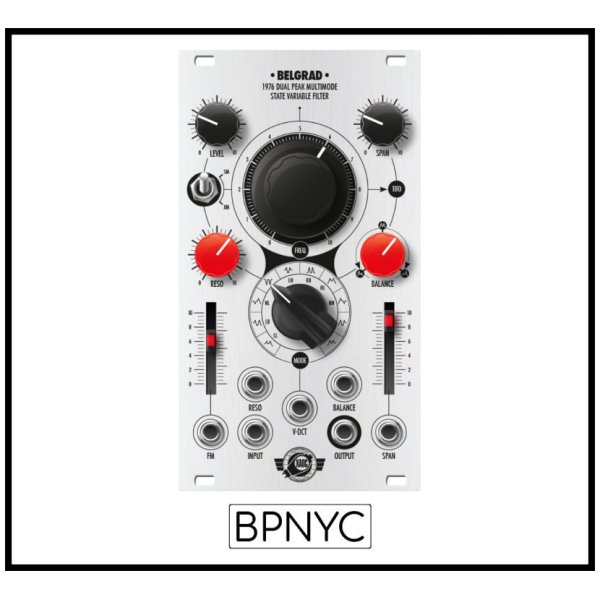

DESCRIPTION

Belgrad is our first all-analog voltage controlled filter module which—on par with our other modules—brings something new to the table. While it can be used as a traditional VCF for “academic” subtractive synthesis, we guarantee countless hours of exciting timbral explorations thanks to its unique character, flexibility, and features. The most prominent feature is that it offers a multitude of frequency responses with two resonant peaks. For detailed description, please refer to the manual.

FEATURES

• All analog, dual core filter design
• 10 distinct frequency responses
• Wide tuning range, approx. 4hz to 28kHz
• Low noise audio path
• Voltage controlover the resonance and peaks balance
• Nonlinear feedback and cross-modulation
• V/octave input
• Adjustable input overdrive

TECHNICAL DETAILS

• Eurorack synth compatible
• 14hp, skiff friendly
• Current draw: +45mA / -42mA
• Reverse power protection
