SPACE REFLECTIONS

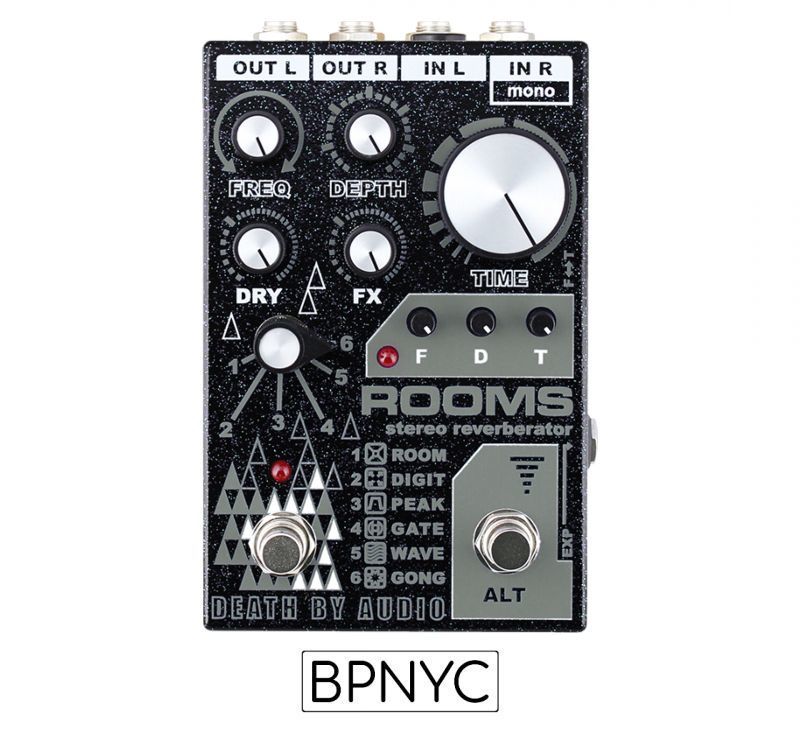

ROOMS is a stereo, multi function digital reverb capable of searing volume, gated walls of sound, and long, trailing reverberant ambiances with an intuitive array of controls designed with live mood-bending in mind.

ROOMS was designed to the highest standards of flexibility and audio fidelity. A studio-quality mixer section provides independent DRY and FX controls over six meticulously programmed reverb algorithms; ROOM, DIGIT, PEAK, GATE, WAVE, and GONG. Each different verb is capable of a universe of sounds, and ROOMS is here to help you explore them.

ROOMS' creative I/O switching and dual-mono dry signal lines allow for a wealth of possible mono and stereo configurations, making it easy to route signals for parallel processing or stereo amplifier setups.



CONTROLS


FREQ: Controls the frequency parameter of the current mode.

DEPTH: Controls the depth parameter of the current mode.

TIME: Controls the reverb time in all modes.

DRY: Controls the volume of the dry signal, from -inf to 20x gain.

FX: Controls the volume of the reverb signal, from -inf to 20x gain.

ALT: Engages the ALT mode, switching between two sets of controls. When active, FREQ is controlled with the F knob, DEPTH with the D knob, and TIME with the T knob. Additionally, the ALT mode turns on expression control of either FREQ or TIME using the F<->T Switch on the side of the pedal. NOTE: Expression control ONLY works in ALT mode and when an expression pedal is plugged in.



SPECIFICATIONS

Dimensions: 5.95" x 3.86" x 2.96" (including hardware).

Weight: 18 oz.

Power: 80 mA, 9V (runs on a standard 2.1 mm negative center 9V adapter).

Expression Pedal: Almost any expression pedal will work with ROOMS. When not plugged in, the controls work as normal. NOTE: Expression control ONLY controls the F or T knobs when ALT mode is engaged and when an expression pedal is plugged in.



MODES AND PARAMETERS:

FREQ knob : DEPTH knob


1 - ROOM: Tone of Decay : Pre-Delay

A classic reverb that simulates many different rooms.

2 - DIGIT: Delay Time : Delay Feedback

A filter matrix verb capable of creating otherworldly resonances and fractured repeats.

3 - PEAK: Filter Frequency : Filter Resonance

A super intense bandpass filter combined with an ambient reverb.

4 - GATE: Decay Tone : Gate Response Time

A gated reverb. Short reverb times create a classic gate effect, long reverb times create a controllable freeze effect.

5 - WAVE: Modulation Frequency : Modulation Depth

Creates a pitch vibrato effect. Lowering TIME will blend out the reverb signal, allowing sweeps from chorus/vibrato to long modulated reverbs.

6 - GONG: Modulator Frequency : Blends from Aliasing (left) to Ring Modulation (right)

Ethereal, crushed reverb sounds guaranteed to make you star in the upcoming remake of DUNE and live out your sci-fi fantasies of space travel and galactic domination.
