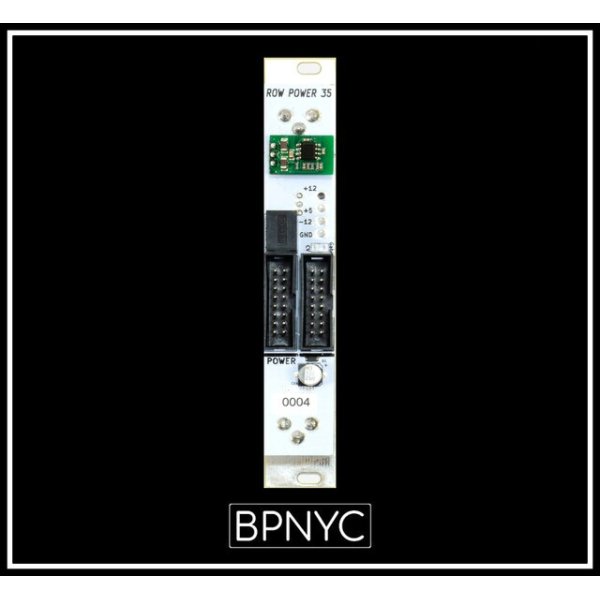

Row Power 35 [RP35]


Row Power is a clean, regulated, and protected power solution for eurorack systems. Row Power 35 provides 35W of power, suited for any typical eurorack row (84HP to 168HP):

• +12V @ 1.4A
• -12V @ 1.25A
• +5V @ 1.0A

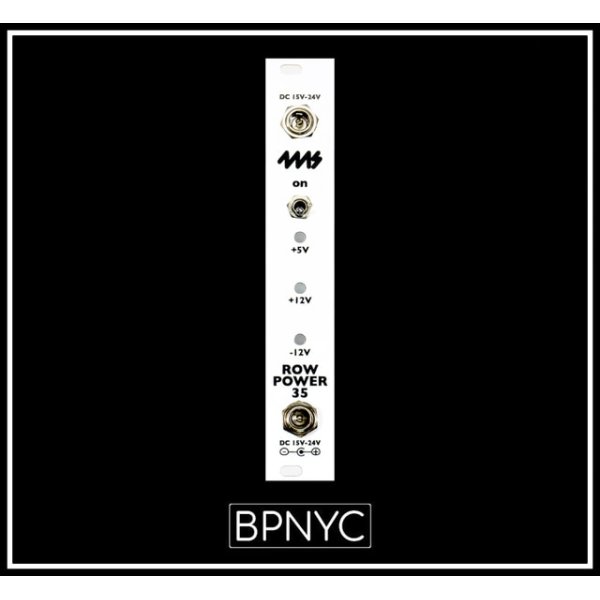

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via  or the .

Daisy-chain multiple Row Powers to use a single power brick for multiple rows (typically 3-5 rows per power brick). Each row will be independently regulated and protected for ultra-low cross-talk between rows. Rows can also be hot-swapped (plugged/unplugged without powering the whole system down).

Basic Features:

• Two power jacks for daisy-chaining multiple ROW POWERS: a common laptop-style power brick could power 3-5 rows (typical)
• On/off switch cuts power without interrupting the daisy-chain
• ROW POWER 35 provides more than enough power for a 84HP or 104HP row of modules.
• Ultra-clean: Each rail is separately regulated with high-grade components
• Runs cool: ROW POWER is efficient so it won't heat up your system. Electronics like to chill!
• Skiff-friendly: only 27mm (1.1") with power connectors installed.
• CV/Gate headers for expansion

Electrical and Mechanical Specifications:

• Module Size:
• 4 HP Eurorack format module
• Power Output:
• +12V @ 1.4A, -12V @ 1.25A, +5V @ 1.0A
• Powered by laptop-style DC power supply: 2.1mm barrel, positive center, 15V-20V.

Included with the Row Power 35:

• 16-to-16 pin power cable
• 2 M3 Knurlie screws

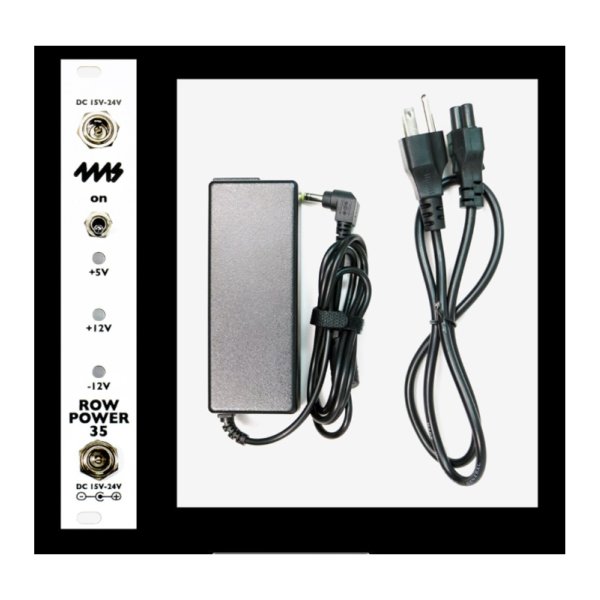

Power Brick [90W]
15-20V / 90W / 2.1mm Barrel Plug (5.5mm outer diameter) / Positive Center

Compatible power bricks are available wherever ROW POWER modules are sold. You also may use your own power brick if it meets the following requirements:

• 15V to 20V DC
• Positive center 2.1mm barrel plug
• Minimum 30W output power
• Low-noise output
