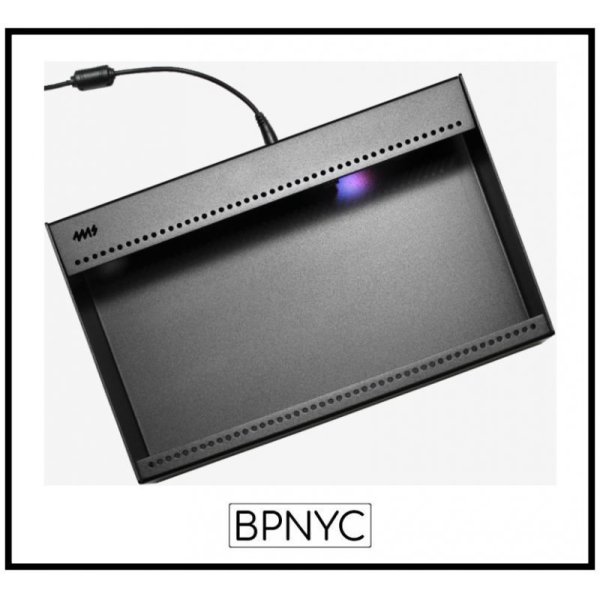

Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod48X is 48HP and has extra room to fit deep modules (2.00" (51mm) of available module depth). The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

This Pod requires a power brick (not included).

Or, if you already have a Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain power supplies.

Overview:

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

Each Pod48X typically will house up to four modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

• 48 HP Eurorack modular space
• Extra room for deep modules
• Standard M3 threaded holes
• 100% lightweight anodized aluminum
• Built-in Power supply
• Red, White, and Blue LED power indicators

Includes:

• 48HP Pod, black anodized aluminum
• Built-in power supply with four Eurorack power headers
• M3 x 8mm pan-head screws, stainless steel (10)
• Adhesive rubber feet (4)
• Does not include barrel cable or power brick

Power Supply:

• Four 16-pin Eurorack power shrouded headers
  • +12V max 1.4A
  • -12V max 0.65A
  • +5V max 1A
• Power input: Two barrel jacks for daisy-chaining
  • 15V-20VDC, 2.1mm positive tip

Exterior dimensions:

• Width: 248.3mm (9.78")
• Height: 159.5mm (6.28")
• Depth: 53mm (2.08")

Interior dimensions:

• Max module depth: 50.8mm (2.00")
• Module width: 48HP

Weight:

• 0.35kg = 12oz

User Manual:

• Pod User Guide
