XOR Electronics

XOR Electronics NERDSEQ　

販売価格: 116,900円

重さ: 2lb

Face Plate 色:

数量:

返品特約に関する重要事項

商品詳細

HYBRID TRACKER SEQUENCER, SYNTHESIZER AND TOOLBOX FOR EURORACK

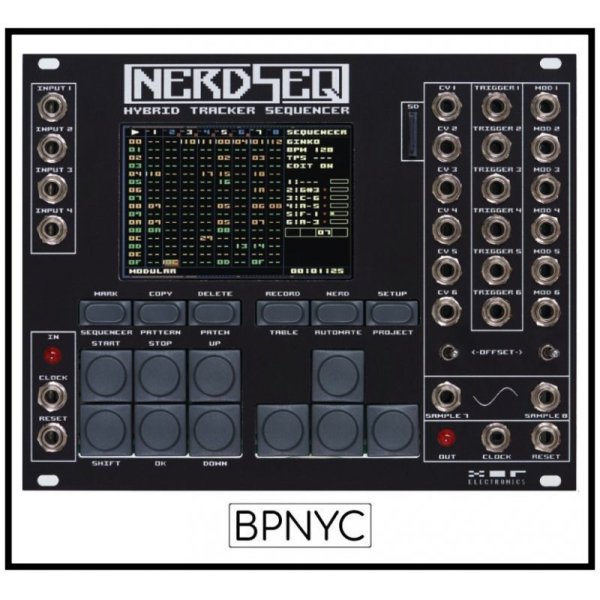

The Nerdseq is a tracker based cv and trigger sequencer module (32HP) for Eurorack systems.
It consists 6 tracks for the CV/Trigger/MOD generation of 18 outputs. 4 User assignable inputs, clock and reset in/outputs and 2 x 2 audio tracks to sequence samples and the integrated oscillators and FM synthesis. As the worlds first hardware tracker it allows straightforward and fast editing together with nice live playing abilities.

TRACKER STYLE SEQUENCER

Worlds first hardware tracker! A full CV and Trigger sequencer inspired by oldschool trackers (like Fasttracker2, ImpulseTracker or LittleSoundDJ)

CV AND TRIGGER I/O

18 outputs for CV and Trigger sequencing. CV’s are free assignable for Note-scale and/or Modulations. 4 Multi purpose Inputs

AUDIO

2 additional outputs for 4 audio tracks allow sample sequencing, Oscillators, 4 Operator FM Synthesis

SEQUENCER TOOLS AND SPECIALS

Automation, (Wave-)Tables, Quantize, Glide, Retrigger, LFO’s, Envelopes, Polyrhythmic Patterns, Groove, Probability, Dividers, Multipliers and many more

LOADS OF SEQUENCER MEMORY

255 sequencer rows, 176 patterns with each up to 64 steps can hold many songs for one project. Tons of projects manageable through a SD-Card.

EXPANSION MODULES

Special expansion modules allow Midi Input and Output, controlling with a Sega Gamepad and expanders for up to 64 additional outputs

Specifications

Power: ~150mA(+12V), ~32mA (-12V), 0mA(5V)
Hardware:
– 32HP, 2.5cm deep
– 3.5″ Colour Graphics IPS display with a resolution of 480 x 320 pixels
– 10 full size and 6 half size buttons
– 28 mini-Jack (mono), 4 CV Inputs (range 0..10 Volt) , 12 CV
outputs (Range -5 Volt /+5 Volt or 0 Volt / +10 Volt), 6 Trigger/Gate Outputs (5 Volt),
2 Sample outputs (-5 Volt/+5 Volt), Clock + Reset In/Output (5 Volt)
– microSD connector accessible on frontpanel
– 2 Expander ports for Midi and up to 4 extensions
Firmware:
– 8 Tracks -> 6 CV/Trigger/Gate, 2×2 sample tracks for 2 audio outputs
– 239 Sequencer rows
– 175 Patterns with each 64 (and less) Steps
– flexible and comfortable arrangement of patterns
– Capable for advanced song arrangements as well as live access to patterns
– Euclidean Rhythm input for Trigger Expander
– 176 Patches
– 32 Tables with 16 (and less) steps
– 8 Automation slots (LFO/Modulations)
– 8 ADSR Envelopes
– 12 Sample slots
– Sample support for RAW 8 bit mono and WAV 8/16 bit, Mono/Stereo
– 4 Oscillators with Sine, Triangle, Sawtooth, Pulse, Noise Waveforms
– 4 Operator FM Synthesis
– Projects as many as the SD card can hold
– Launchpad Integration
– With expansions up to 64 additional outputs sequenceable
– Midi multitrack / multichannel polyphonic sequencing with all midi features and additional modulations
…..and much more….
