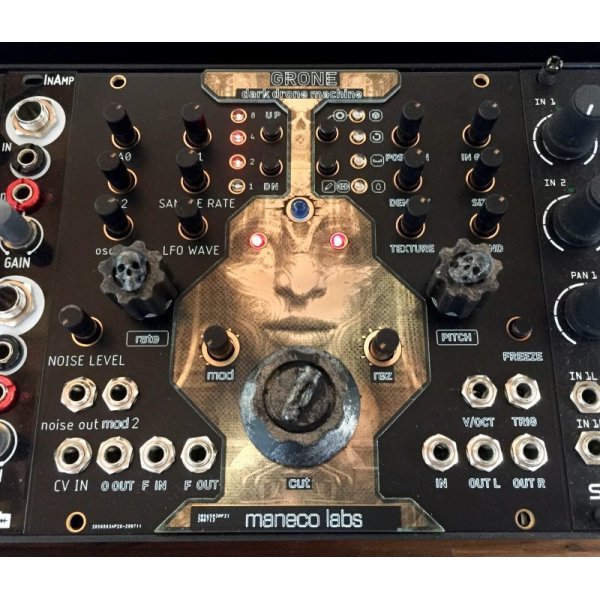

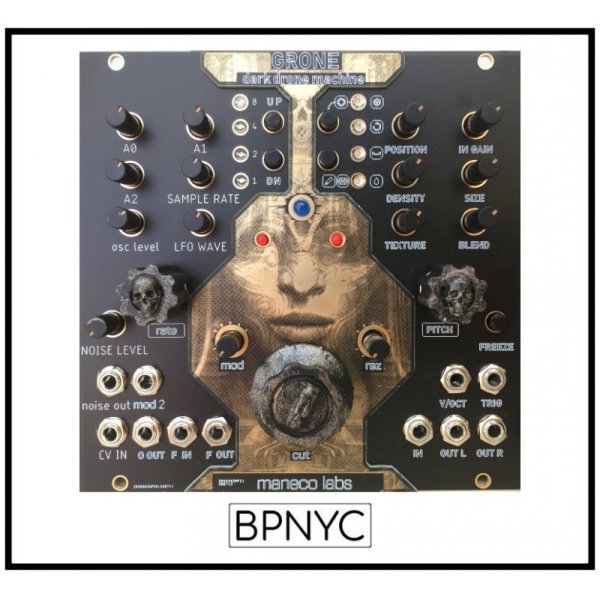

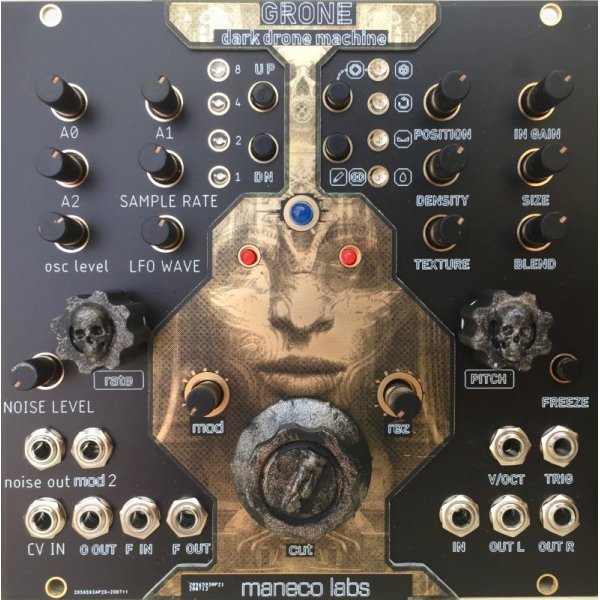

Generates sound based on equations converted to analog signals , there are sixteen equations selected by Up and Down switches. Four leds indicate equation number in binary mode. Three Pots modify numbers used by the equation, A0 , A1 and A2 , fourth pot Sample Rate controls pitch and speed of the oscillation. There’s an Output Level pot for the oscillator and a dedicated jack for patching the Oscillator sound to external modules .
NOISE GENERATOR :
White noise with noise level pot and noise output jack.
VCF :
MS20 resonant low pass filter , with CUT frequency pot control , RESONANCE , MODULATION 1 amount pot , input and output jacks and second cv input for cut off ,labeled MOD2
LFO
: Low frequency oscillator routed to MOD1 from VCF , RATE and WAVEFORM shape pots.
Waveforms are : ramp up, ramp down, square, triangle, sine , sweep, random levels, random slopes.
CLOUDS
: based on MUTABLE INSTRUMENTS eurorack module , with parasites firmware , same controls from MI : Input gain, position, size, density, pitch, texture, blend , switches for blend parameter and load/save, freeze control with indicator led , same display as MI original, Dedicated audio input jack (mono) stereo output and control inputs for V/OCT and TRIGGER.
