Erica Synths Pico System III
はお手頃価格/コンパクトでありながらも強力なサウンドのフルアナログモジュラーシステム！
ユーロラックとデスクトップの2つのバージョンがあります。

*2-3-4 ステップシーケンサー
*2x VCO
*VCO コントローラー/VCA モジュール
*CV/オーディオ ミキサー
*モジュレーター (LFOシンク/ランダムCV/ノイズソース)
*2x ボルテージコントロール ASR エンベロープジェネレータ
*2x レゾナントローパスゲート
*BBDディレイ

デスクトップユニットには
・20本のパッチケーブル
・1本のHosa製スタッカブルケーブル
・パワーサプライ
・5枚のファクトリープリセットボイスカード
・5枚のDIYボイスカード
・ユーザーマニュアル
・パッチノートシート
が付属します。

ユーロラックモジュールバージョンには
・1本のHosa製スタッカブルケーブル
・リボン電源ケーブル
・5枚のファクトリープリセットボイスカード
・5枚のDIYボイスカード
・ユーザーマニュアル
・パッチノートシート
が付属します。

Erica Synths Pico System III is affordable, compact, yet powerful sounding, full analogue modular system.
It comes in two formats – eurorack and desktop.

Features
* 2-3-4 step sequencer
* 2x VCOs
* VCO controller/VCA module
* several mixers that work both with CV and audio signals
* Modulator (syncable LFO, random CV and noise source)
* 2x voltage controlled ASR envelope generators
* 2x resonant lowpass gates
* BBD delay

Pico System III brings modular synthesis back to the basics – the system has multi functional (instead of single-function, like Pico Drums or Pico Trigger in the Pico System II) analogue modules and is intended to encourage creativity in modular patching.
The system has 31 inputs and 20 outputs (master output is duplicated) + 7 switches; if you have enough patch cables at your disposal, you can patch the system in 121000931215044250740178662400 or 1.21x1029 variations (we ignored the possibility to adjust potentiometers here). Even though only 0,0001% of all patches will sound more-less enjoyable, you and all your future generations can spend a lifetime only patching the Pico System III.

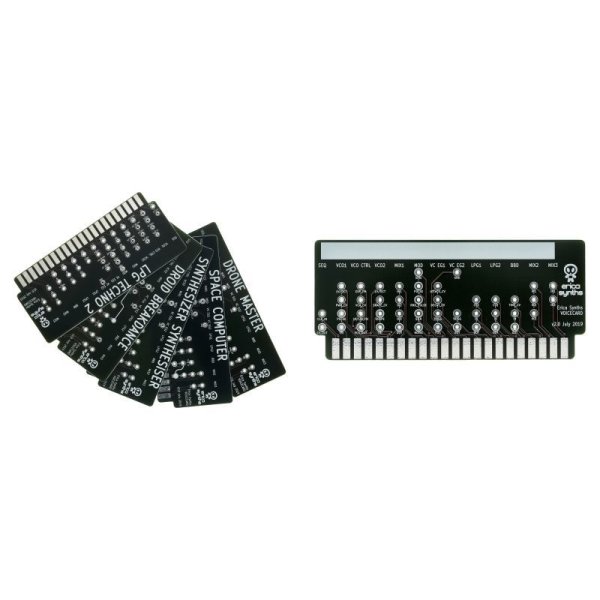

Voice-cards with preset patches set it apart from other eurorack systems – they allow user to change patches instantly and radically, which makes the system well suited for experimental live performances. The system comes with 5 great sounding “factory preset” voice-cards, and 5 DIY voice-cards that are empty and users can develop their own patches. More voice-cards will be available from Erica Synths shop.
Pico System III comes both as a desktop unit and a eurorack module. It features a set of modules for advanced sound design, experiments in modular patching and educational purposes.

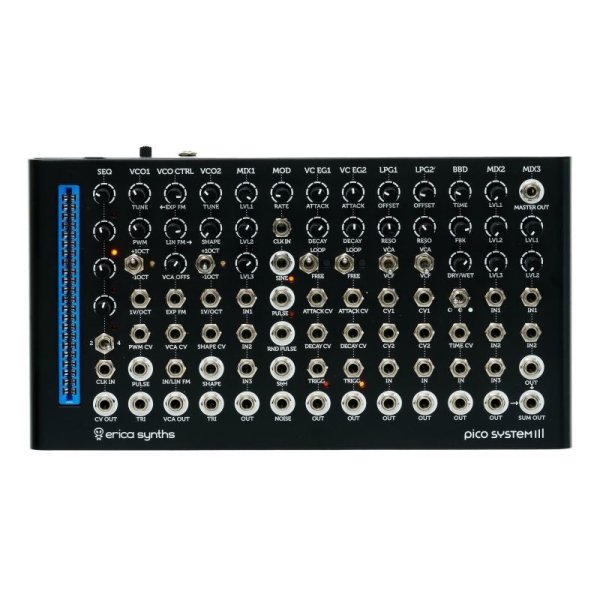

Desktop unit
20 patch cables, 1 Hosa stackable cable, PSU, 5 factory preset & 5 DIY voice-cards, user manual and patch note sheets

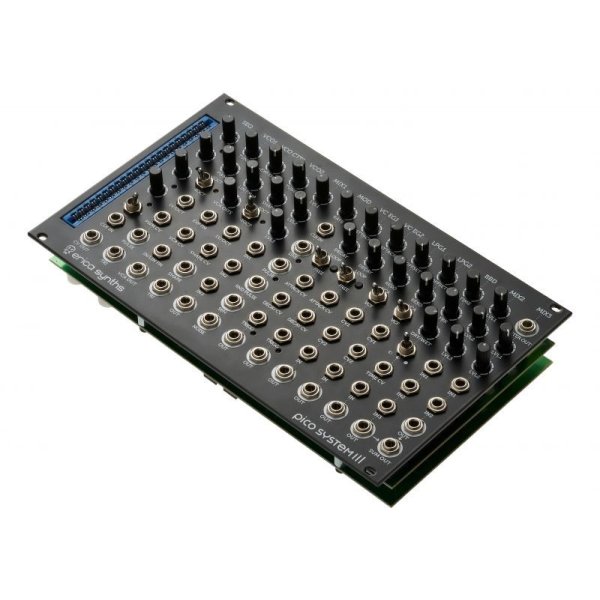

Eurorack module
1 Hosa stackable cable, ribbon power cable, 5 factory preset & 5 DIY voice-cards, user manual and patch note sheets


Technical specifications:
Audio signal levels /10Vptp
CV signal levels (full span) /-5V - +5V
Sequencer CV output range /0 - +5V
VCO tune range /C0 - E7
LFO rate /0.21Hz - 20Hz
VC EG attack time /0...3''
VC EG release time /0...4.2''
Max BBD delay time /400ms
Panel width /42 HP
Power consumption /175mA@+12V, 112mA@-12V



The Pico System III is a completely analog modular system with 13 Pico modules and preset memory. The good selection of modules allows a large number of patches and is ideal for learning analogue synthesis. The Pico System III is small and above all cheap, which makes it a modular synthesizer for everyone. - Bonedo
