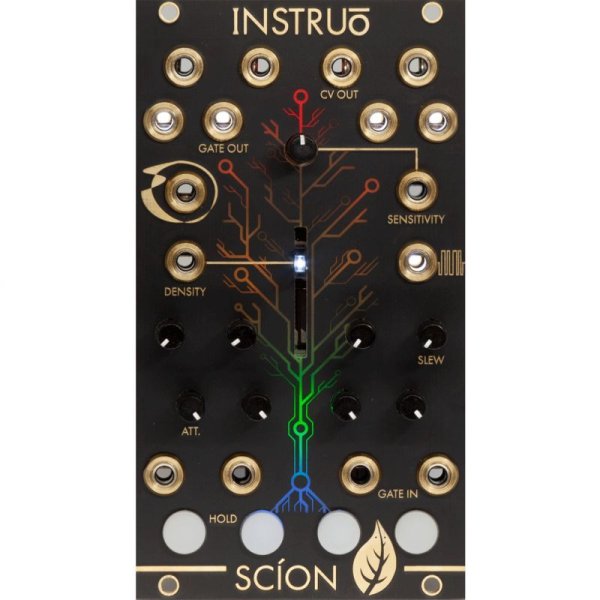

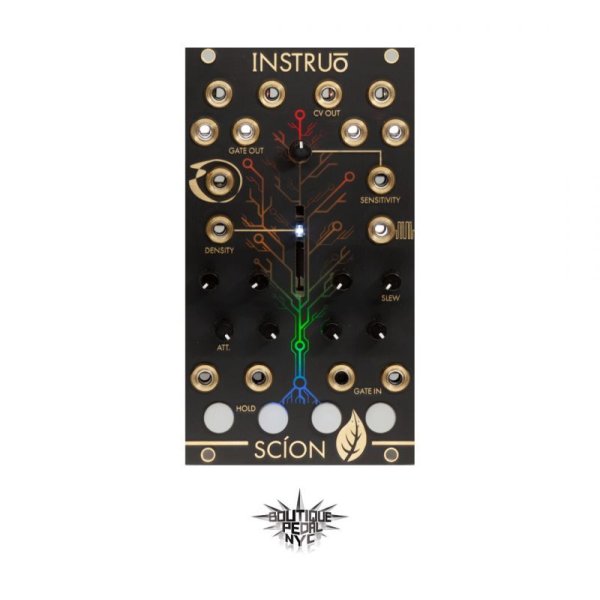

SCÍON
The SCÍON is a biofeedback sensor built into a quad random voltage generator. This design is based on the MidiSprout by Datagarden (https://www.midisprout.com/)
It translates biofeedback data, sourced from contact with organic surfaces, into musically useful control signals. Tiny fluctuations in surface conductance on organic materials stimulate control voltage and gate signal changes that can be used to modulate and permutate your patch. Dynamic control over biofeedback sensitivity allows you to quickly adapt any input source to a useful range of responsiveness.
Apply the sensor pads (included with the SCÍON) to your house plants, your own skin, or even attach the sensor clips to your pet (only if it is willing). When no sensor cables are used simply touching the capacitive Leaf electrode with your finger will create random voltages derived from life itself.
SCÍON offers the ability to make music with all living things.
SCÍON |ˈsʌɪən | noun (biology) young shoot or stem useful for sprouting or forming new roots, a descendant of a noble family
Description
Size
14HP
Depth: 27mm
Power
+12V: 70mA
–12V: 10mA
Specifications
3.5mm input jack for tens cable
Two sets of sensor cables featuring sticky electrode pads or soft clips
Gold touch plate for direct interface with bio-feedback sensor
Four 0-5V CV outputs with independent attenuators and slew controls
Four Gate outputs
Four Gate inputs for triggering ratcheted subdivisions or S&H style clocking
Four Hold buttons to freeze each channels current state
CV controllable SENSITIVITY (0-5V range)
CV controllable note DENSITY (0-5V range)
Description
The SCÍON is a biofeedback sensor built into a quad random voltage generator. This design is based on the MidiSprout by Datagarden (https://www.midisprout.com/)
It translates biofeedback data, sourced from contact with organic surfaces, into musically useful control signals. Tiny fluctuations in surface conductance on organic materials stimulate control voltage and gate signal changes that can be used to modulate and permutate your patch. Dynamic control over biofeedback sensitivity allows you to quickly adapt any input source to a useful range of responsiveness.
Apply the sensor pads (included with the SCÍON) to your house plants, your own skin, or even attach the sensor clips to your pet (only if it is willing). When no sensor cables are used simply touching the capacitive Leaf electrode with your finger will create random voltages derived from life itself.
SCÍON offers the ability to make music with all living things.
