This machine can be used in different ways. It includes two types of effects, a BIT CRUSHER or SAMPLE RATE REDUCER, and a more destructive WAVE DISTRUCTOR.
Both can be used as simple effects on an input signal (such as pick-up signals such as guitar, bass, etc., or electronic signal such as synth, drum machine, etc.) or via a switch that activates two square-wave oscillators , can be applied to a DRONE MACHINE in order to always have the available source signal. Also good as noisebox, inserting an input cable and performing body contact. CHANGELOG :
In this version the output signal has been further amplified, and the effect chain has been changed. The switch to select the effect can only activate or deactivate the BITCRUSHER, while the WAVE DISTRUCTION is always active. No change to the two oscillators that allow the machine to be used as a drone generator, without the aid of an external sound source.
TECNICAL INFO
Dimensions: 221 x 150 x 63mm
Standard case : ABS
Color : BLACK

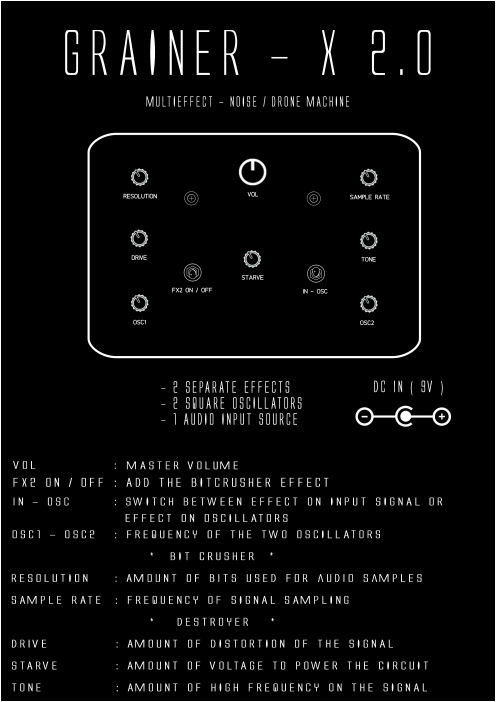

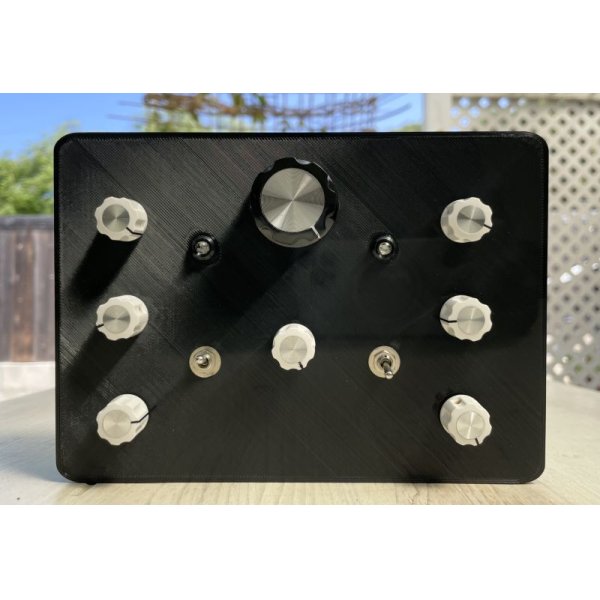

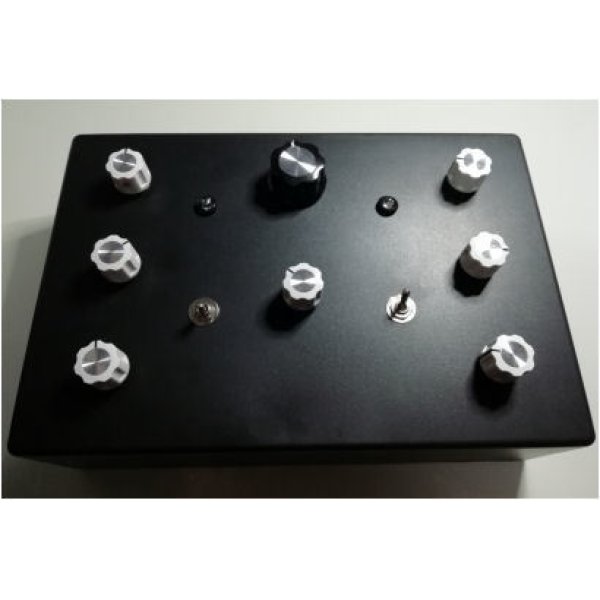

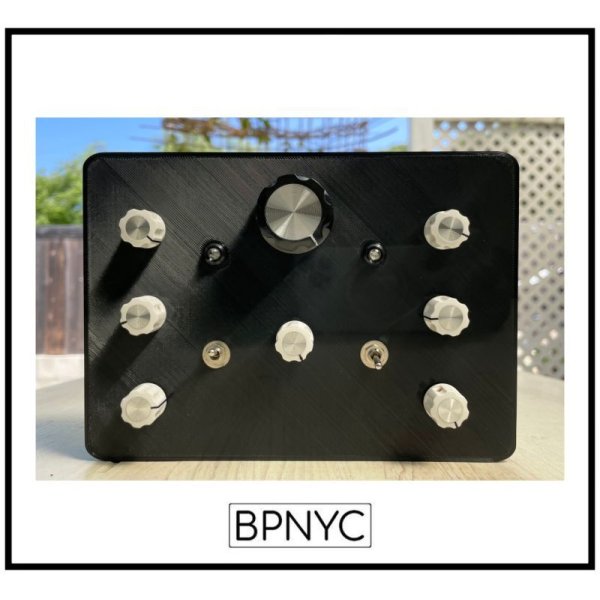

Front panel : 1 power green led, 1 multi color oscillator led, 8 knob, 2 selector switch

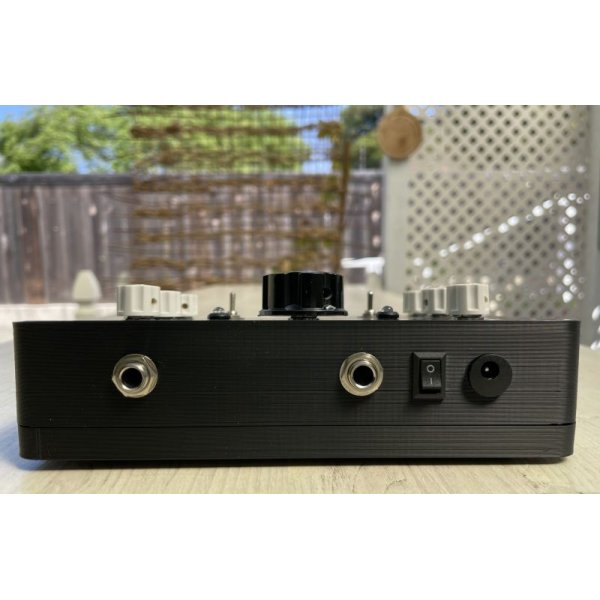

Rear panel : 1 audio output jack, 1 audio input jack, 9V DC jack, 1 power switch
