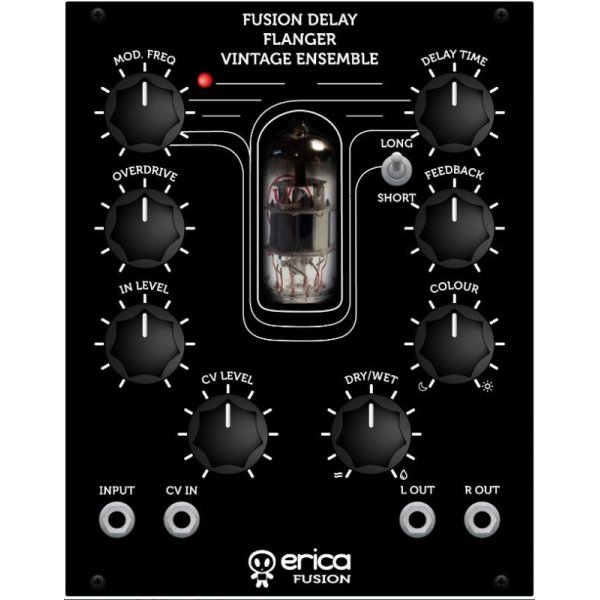

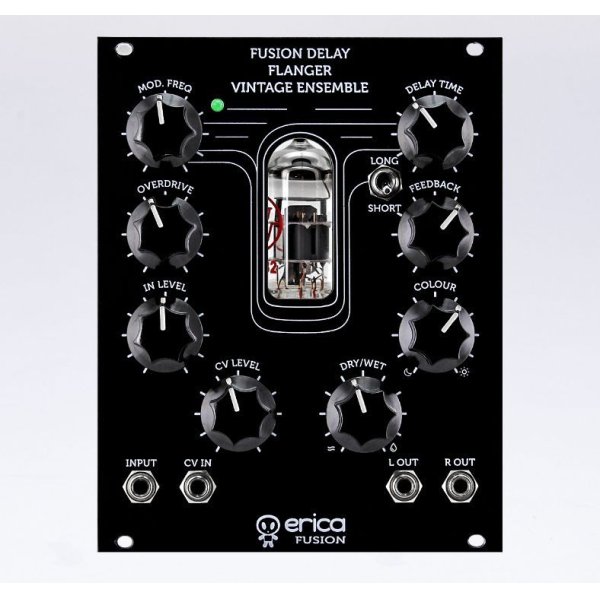

Erica Synths Fusion Delay/Flanger/Vintage Ensemble 要予約

販売価格: 69,102円

[通常販売価格: 69,800円]

重さ: 1lb

商品詳細

Erica Synths Fusion Delay/Flanger/Vintage Ensemble module is distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and feedback path for extra thickness of sound.

For more flexibility, lowpass filtering is fully adjustable from none to extreme. Special feature, not found in eurorack, is Vintage Stereo Ensemble – effect that’s common on vintage synthesizers to create moving and thick spatial sound from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.



Price: 375EUR
+ 21% VAT for individual customers in EU without EU VAT registration number + shipping


Technical specifications:

Audio input signal level

up to 20V ptp


Max delay time SHORT setting

20ms

Max delay time LONG setting

200ms
LFO range

0.1Hz – 30Hz
Power supply

bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU

Power consumption

Tube heater PSU configuration: 35mA@+12V, 20mA@-12V, 300mA@6VAC

Eurorack PSU configuration: 35mA@+12V, 170mA@-12V (NB – start-up power consuption for few seconds is +-250mA)

Module width

20HP

Module depth

35mm

日本語マニュアル
