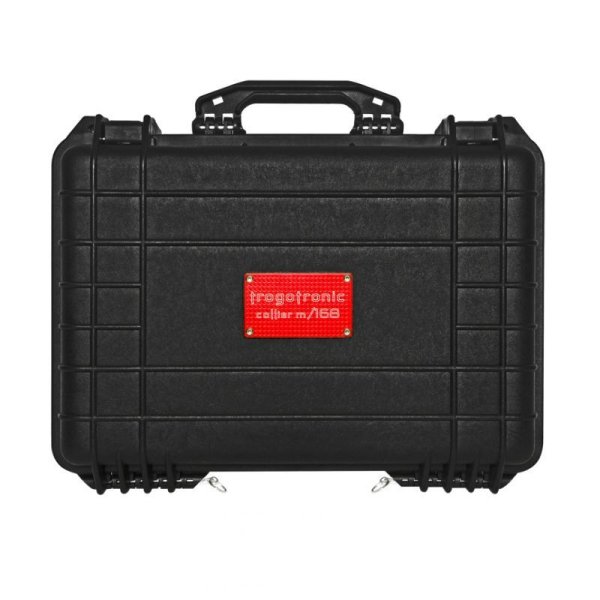

Trogotronic m168 / Collier Case 次回入荷分

コリアーシリーズm/168ユーロモジュラーケースは、ワールドワイド10,000 mA電源システム、最強のラック・ハードウェアとほぼ破壊不可能な強力なケースです…

・頑丈な防水ブリーフケース
・電源スイッチ ＆リムーバブルコード付きAC電源入力(168S モデル）
・2x 84hp= 168hp容量
・ツインピン リムーバブルケース蓋付き、フィンガープル
・プレミア スイスレール
・10 Amp（10,000mA）電源システム
・パワーバスボードは最大30モジュール　+12V/+5V/-12V対応
・電源ボード用トリプル電圧ステータスランプ+12V/+5V/-12V
・電源システム 100V~240V対応
・スタンダードパワーサプライ
・75x ステンレスモジュール取り付け用ネジが含まれています
・取り外し可能な蓋付きの重荷重用ケース
・寸法　18 1/4 "x 14 1/4" x 6 3/4 "（36cm x 46cm x 18cm）
・モジュールの奥行き/クリアランス 143hp @3 1/4 "（83mm）、25hp @2.5"（64mm）
・蓋のクリアランス フォームパネル付きの場合 3/4 "（20mm）フォームパネル無し　2 3/8 "（60mm）
・赤いACコード (168S モデル）
・リムーバブル電源コード(168S モデル）
・電源スイッチ

Collier Series m/168 Euro-Modular Case is formidably robust in every part. Powerful worldwide 10,000 mA Power System, best rack hardware available on the planet & a nearly indestructible case.

Being of humble subhuman heritage there remains an aspect of joining the modular knob-mob that bugs us: the exorbitant cost of entry due before even the first bit is added to the system. Worse, in spite of the considerable costs, many of the available set-ups are a compromise: wherein there’s little or even no power capacity whatsoever or the mere offering of +5v tap is an optional luxury; wherein fragile / easily damaged enclosures or table top tinker toys are touted as options; wherein infuriating substandard mounting systems are the norm rather than the exception. After testing many of these half-assed ideas we decided that every part used in Collier Series Euro-Modular Cases should be formidably robust & user friendly—even when this meant that some parts chew into our net. The m/168 Collier Case’s ultra-powerful, worldwide-compatible 10,000 mA Power System coupled with the best rack hardware available on the planet enclosed in a nearly indestructible case is born a turnkey classic of road-defying durability & outstanding value. And now its available in the original splash-proof base model m/168 & a new version m/168s with power inlet with switch plus removable cord.

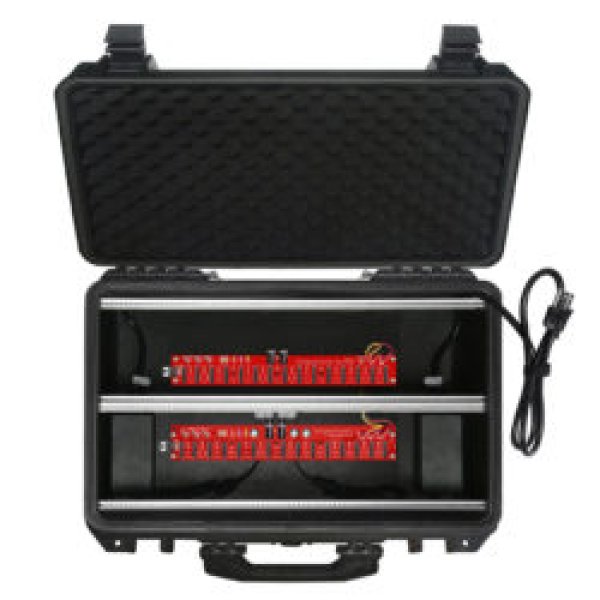

m/168 Collier Case Original Model

Rugged Splashproof Brief-Case
2 Rows of 84hp = 168hp Capacity
Twin-Pin Removable Case-Lid w/Finger Pulls
PREMIUM Swiss Rails = No Half-Assed Loose-Nut Comedies
10 Amp (10,000mA) Power System INCLUDED
Power Boards Accommodate Up To 30 Modules w/+12v, +5v & -12v
Triple Voltage Status Lamps for Power Board (+12v/+5v-12v)
Power System Works ANYWHERE ON EARTH
STANDARD Power System Supplies = Quick/Easy User Service
Plenty of Stainless Module Mounting Screws INCLUDED

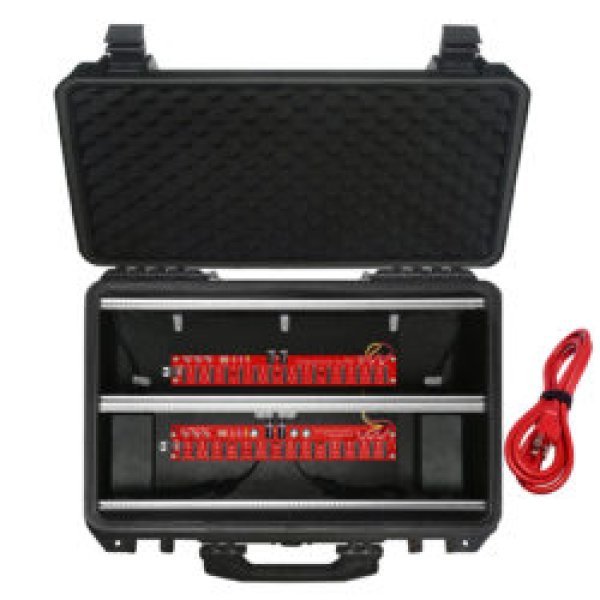

m/168s Collier Case

Rugged Brief-Case
AC Power Inlet with Power Switch & Removable Cord
2 Rows of 84hp = 168hp Capacity
Twin-Pin Removable Case-Lid w/Finger Pulls
PREMIUM Swiss Rails = No Half-Assed Loose-Nut Comedies
10 Amp (10,000mA) Power System INCLUDED
Power Boards Accommodate Up To 30 Modules w/+12v, +5v & -12v
Triple Voltage Status Lamps for Power Board (+12v/+5v-12v)
Power System Works ANYWHERE ON EARTH
STANDARD Power System Supplies = Quick/Easy User Service
Plenty of Stainless Module Mounting Screws INCLUDED

The Collier Case is built for road warriors:
Hit it with a hammer or throw it at a wall—you’re good. And the Original version is splash-proof; while we don’t condone leaving it in the rain or taking it scuba diving chances are o-ring sealed lid, pressure relief thumbscrew & stainless fasteners WILL will protect your gear when some asshole spills a drink on it at a gig.
The included Trogotronic Power System does NOT have bullshit bells & whistles advertising copy dab-dreamed-up to justify the price—our marketing is simple: offer the cleanest, most powerful Triple DC Voltage system available using standard off-the-shelf power supplies rather than Don Draper hype. Since one can’t believe everything printed on the side of a Chinese box ALL of our supplies are TESTED UNDER FULL LOAD for any voltage drop & may be user replaced in minutes should anything ever go wrong years down the road when the equipment is out of warranty. Lastly to finish the theme of overabundance with consistency we offer all Collier Case models at prices that deliver an extraordinary value.


Patch cord power pundits of the past told us it couldn’t be done. Some retro “rack-ontuers” even say SHOULDN’T. With m/15 Higher Power system: triple-voltage is STANDARD. Worldwide compatibility—STANDARD. Overload protection—STANDARD. 10 or more amps—STANDARD. Super-quiet operation—STANDARD. Expansion up to 40 Amps— NEW STANDARDS ALL AROUND.

Trogotronic m/15 Higher Power system is BUILT modular FOR modular starting at $104 (DIY-Kit version)—that’s nearly 100mA PER DOLLAR—, factory assembled systems start at $138. Installation, expansion & maintenance is simpler than your most elementary synth patched mess on the front end so no sweat there Dr. Who! The power bricks are dead quiet, worldwide compatible, overload & reverse hookup protected for safety & are load-tested to ACTUALLY perform to advertised specs (unlike most shady Shenzhen black-box vibrators). Our install guides & real-time customer service sans-phone-trees / off-shored call center are the stuff of legend. Manifest Modular Destiny? More like MUTINY against MALNOURISHED MODULAR SYSTEMS!

10 Amp (3-15u) / 20 Amp (18-30u) Euro Format Modular Supply
User Expandable up to 40 Amps
Includes Triple Power Rails +12 / +5 / -12
Worldwide Compatible
Runs Hungry Modules Without Drama
Works With or Without System-Included 4HP Module
Available as DIY Kit
Lightweight, Quiet & Cool Operation
Load Tested & Overload / Reverse Hook Up Protected
Priced From Nearly 100mA per $1
5v@5A & Up Dedicated Power for 5v Rail Upgrade Available
Removable Cord + Power Switch Module or Case Bezel (Optional)

For CERN-grade sonic power demands simply add power nodes with the 20, 30 or 40 Amp Expander as well as dedicated 5v @ 5A Accessories. That’s up to 40 Amps in a set-up—Hell, run up to 15,000mA per bus-board for all we care. And if you simply want add more bus boards to your existing m/15 system they are available à la carte. Should you have some specialized modules hungry for the 5v tap you can add one or more specially built busboards with its own dedicated 5V@5A supply. No more reason to compromise layout / use of modules due to current demands on your rack’s wracked power system with the m/15. Unreasonably weak supplies are the only remaining unreasonable components.

3 to 15U System Specs

100-240vAC Mains AC Input
Expandable
10,000mA Symmetrical Current Capacity
5,000mA Max Load +5v & +12v combined
5,000mA Max Load -12v rail
1,000mA Max Load Per Board +5v rail (5v@5A Optional)
15 Power Outlets Per Bus Board
User Replaceable Power Bricks

18 to 30U System Specs

100-240vAC Mains AC Input
Expandable
20,000mA Symmetrical Current Capacity
10,000mA Max Load +5v & +12v combined
10,000mA Max Load -12v rail
1,000mA Max Load Per Board +5v rail (5v@5A Optional)
15 Power Outlets Per Bus Board
User Replaceable Power Bricks
